Ergonomic Design for Clinical Refraction Testing

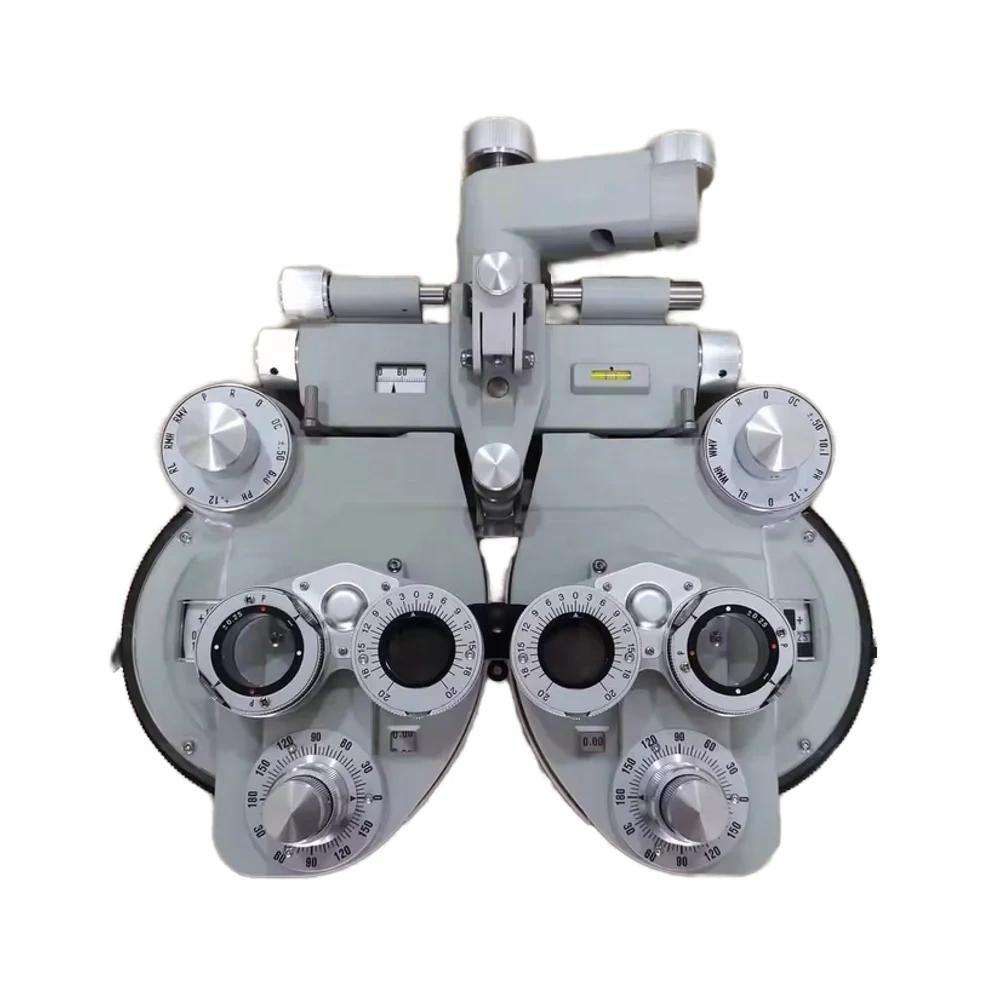

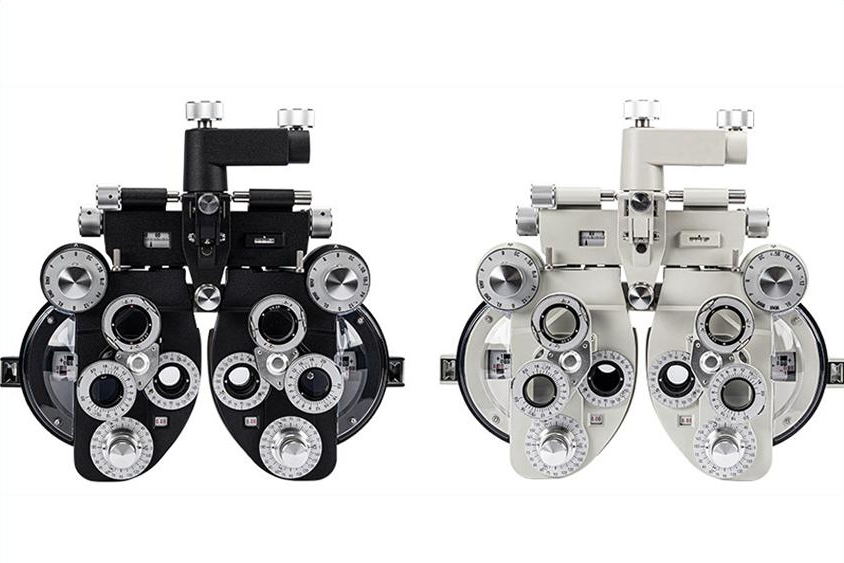

The VT-10C Optical View Tester serves the demanding requirements of ophthalmology machines used within optometry clinics and optical shop equipment environments. Its butterfly-shaped manual phoropter design enhances operational efficiency and comfort for clinicians performing refraction examinations. Target users include ophthalmologists, optometrists, and trained technicians who require precise sphere and cylinder measurements during patient visual assessments. The device’s portability supports streamlined patient flow in clinical and retail eyewear settings, making it a versatile asset among ophthalmic supplies supporting vision diagnostics.
Precision Specifications Delivering Accurate Measurements
This model features a sphere power range from ±16.75D to -19.00D, and cylinder powers adjustable up to -6.00D, extending to -8.00D with auxiliary lenses, enabling refined refractive corrections. The astigmatic axis is adjustable in precise 5° increments across 0 to 180°, while the rotary prism adjustment scales from 0 to 20D in 1D steps. PD adjustment ranges from 48 mm to 80 mm, supporting diverse anatomical fitments, and the effective field of view measures 19 mm. These technical specifications enable detailed assessments and measurements critical to the operation of ophthalmic equipment in clinical practice. Robust construction utilizing metal and optical-grade lenses ensures reliability under routine use in optometry equipment settings.
Integrating into Ophthalmic Workflows for Enhanced Patient Care
The VT-10C integrates seamlessly within established optometry equipment workflows, delivering comprehensive checks of binocular coordination and refractive status. Its portability and size accommodate multi-location use, from specialized ophthalmology departments to retail optical shops. As part of a broader set of ophthalmic supplies, this manual phoropter complements automated devices such as non contact tonometer and auto tonometer systems by providing hands-on refraction data that supports diagnostic accuracy. The instrument is also valuable in training environments, facilitating technician proficiency and enabling detailed patient education through practical demonstrations.
Product Advantages
Robust Structural Design for Durable Clinical Use

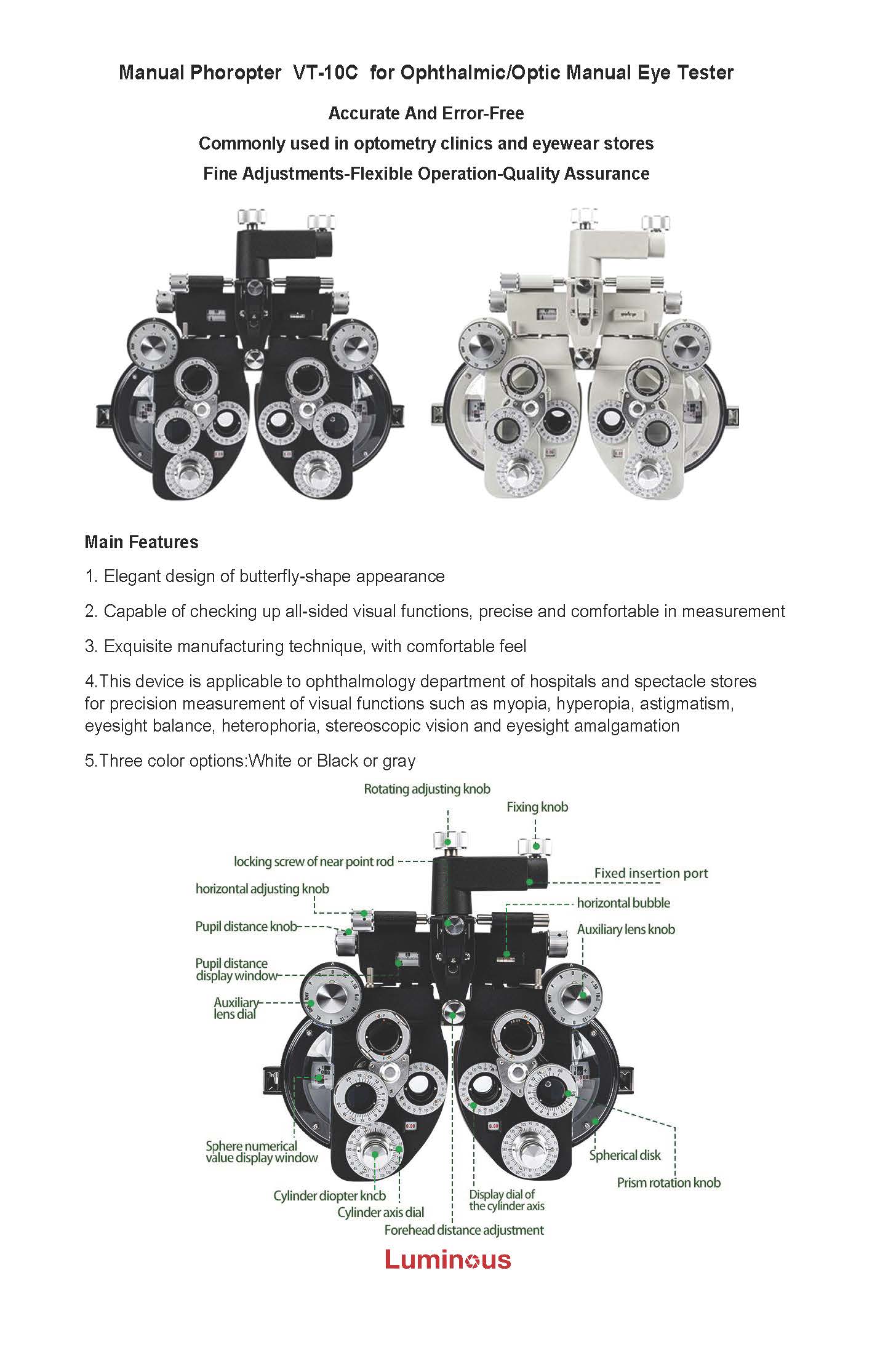

The VT-10C features a thoughtfully engineered butterfly-shape that optimizes handling and stability during examinations, integrating durable materials suitable for frequent clinical use among ophthalmology machines. Its modular architecture accommodates various auxiliary lenses, enabling enhanced cylinder and prism adjustments without compromising instrument balance. This design supports integration within optical shop equipment setups by ensuring compatibility with other diagnostic tools. The device’s PD adjustment mechanism allows fine increments (1 mm steps), reflecting attention to ergonomic adaptability and precision, critical factors in ophthalmic equipment intended for comprehensive visual assessments.
Superior Performance and Operational Efficiency
Performance-wise, the VT-10C offers precise refraction powers with fine resolution down to 0.12D with auxiliary lenses, ensuring accurate correction parameters. The clear, readable markings and smooth adjustment controls improve usability for trained eye care professionals within clinical and retail optical environments. Its lightweight construction (5 kg) and compact dimensions enhance portability without sacrificing robustness, facilitating rapid patient throughput. This manual phoropter thus represents a cost-effective, reliable optometry equipment solution that supports consistent diagnostic quality, thereby optimizing clinical workflow efficiency and enhancing patient care delivery.
Use Scenarios
Vision Testing in Optometry Clinic Environments
In optometry clinics, the VT-10C serves as an indispensable ophthalmic instrument for pre-examination refraction diagnostics. It supports eye care professionals in delivering accurate measurements necessary for prescribing corrective lenses and assessing binocular function. Its precise adjustments and portable design enable effective use within exam rooms equipped with other ophthalmic supplies such as auto tonometer or applanation tonometer devices. Integration into electronic patient records is facilitated through accurate recorded data, aligning with clinical compliance and enhancing overall operational workflow efficiency in the optometry equipment ecosystem.
Functional Role in Retail Eyewear Stores
Retail optical shops implement the VT-10C Optical View Tester to provide on-site vision assessments that inform lens selection and customization processes. This instrument’s adaptable PD range and precise sphere/cylinder controls enable detailed vision evaluations, complementing other optical shop equipment like focimeters and slit lamps. By delivering reliable refraction measurements in a compact form, it supports rapid patient consultations and expedites eyewear fitting workflows. The device’s design facilitates educational demonstrations, enhancing customer engagement with clear visual function checks. Operating within retail workflows, it sustains high standards of diagnostic accuracy and customer service compliance.
Specifications:
| Sphere powers range | ±16.75D to-19.00D,with minimum reading 0.25D or 0.12D |
| (when+0.12D auxiliary lens or optional±0.12D lens is in use) | |
| Cylinder powers range | 0 to-6.00D,with minimum reading 0.25Dor0.12D |
| ( when auxiliary lens is in use) 0 to-8.00D ( when-2.00D auxiliary lens is in use) |
|

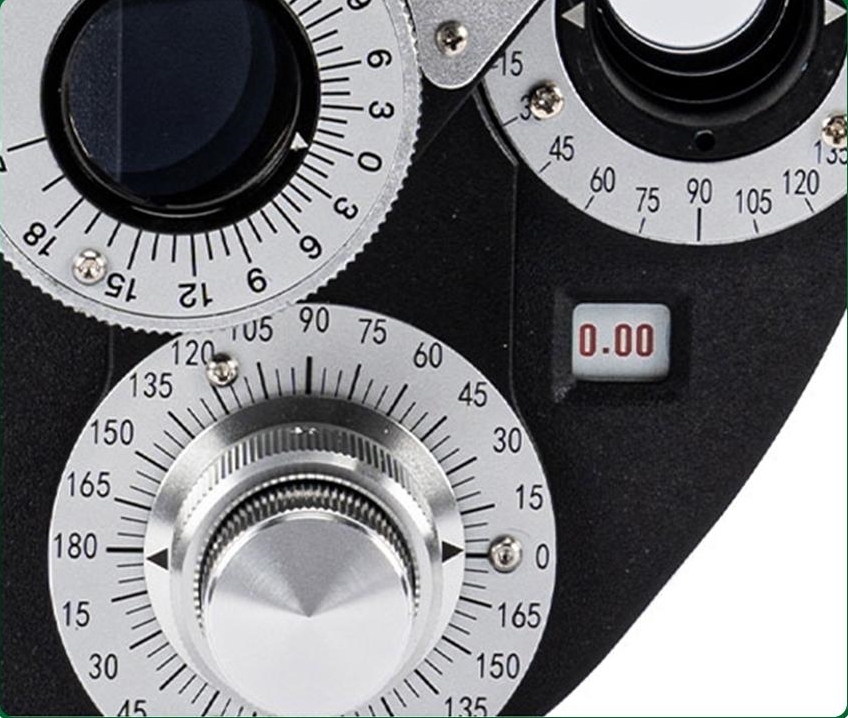

| Astigmatic axis scale | 0 to 180°in 5°steps |
| Cross Cylinder | reversal type (synchronized with astigmatic axis) ±0.25D,or±0.50D |
| Rotary prism | 0 to20 D in 1 D steps |
| P.D. adjustment | 48-80mm;Step:1mm |
| Forehead reat adjustment | 16mm forward and backward |
| Convergence | The optical axes og thelenses are aligned at a diatance of 400mm from the vertexes of the corneas (2mm each for right and left inward)Interpupillary distance enabling convergence=57mm to 80mm |
| Corneal distance device | 2mm forward and 5mm backward from standard plane;with scale |
| Effective field of view | 19mm |
| Weighe | 5kgs |

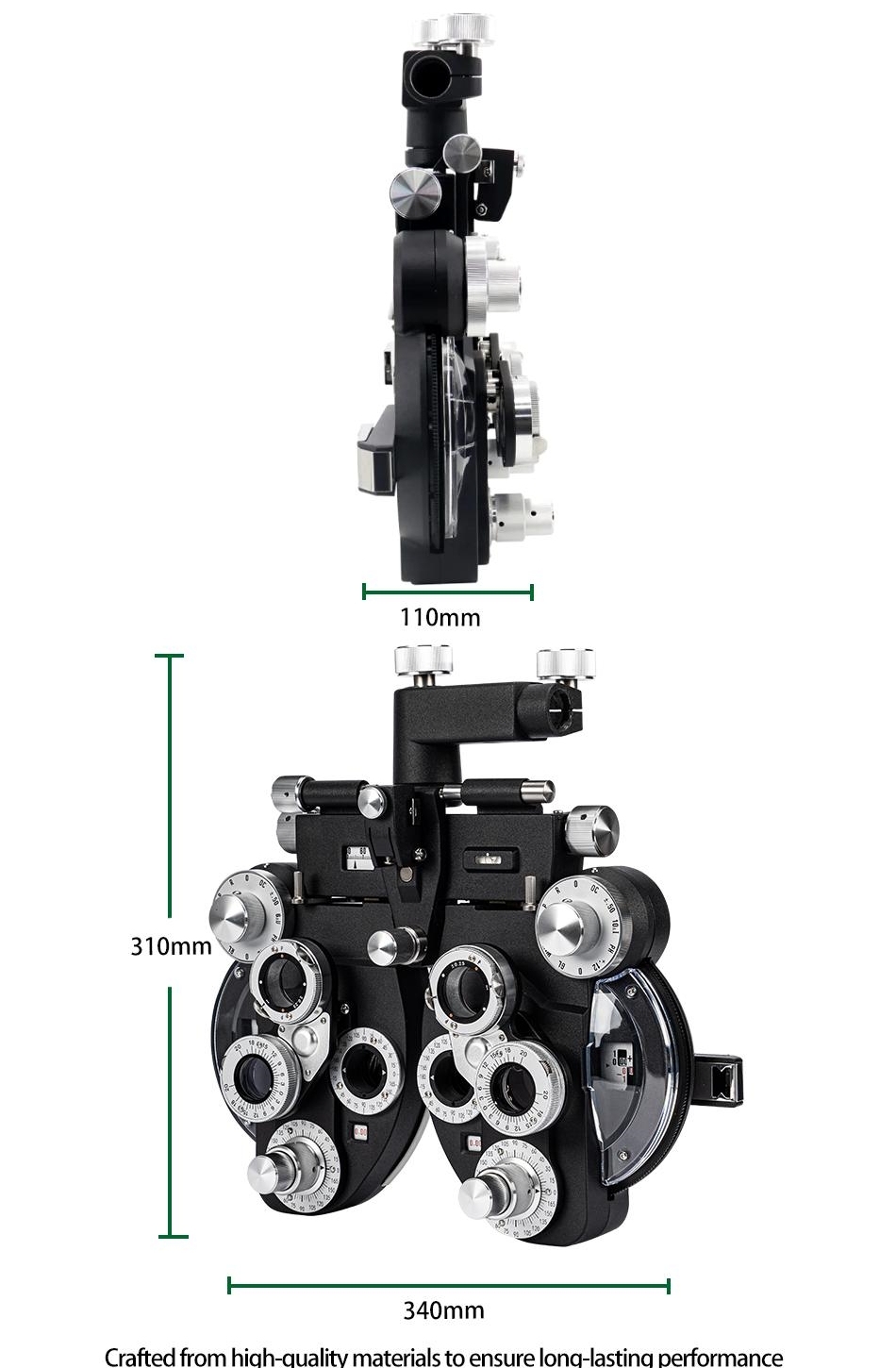

| Size | 291-323mm×315mm×85mm |
