SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer

No.1601233476
SKU:
SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Biometer 
With Normal, Vitreous body enhancement, retina observation model, SW-2100 is mainly used for diagnosis of introcular diseases, display the location, shaper range of the focus of infection and relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
$4,998.00 $4,998.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
1/1
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Pachymeter Biometer
  • Description

Key attributes

Place of Origin
Chongqing, China
Warranty
1 Year
Customized support
OEM, ODM
Brand Name
Luminous
Model Number
SW-2100
Material
Metal/ Plastic/Glasses Lens
Voltage
110-240V
Name
Ophthalmic Ultrasound AB Scan
Test Mode
With Normal, Vitreous body enhancement, retina observation model
Certificate
CE ISO
B Scan Frequency
10MHz, Magnetic driven, noiseless
B Scan Depth
60mm
A Scan Frequency
10MHz, with LED
A Scan Depth
40mm
Warranty
1 Year
Package Size
15X10X20cm
Package Weight
22KG

Packaging and delivery

Port
Shenzhen,Shanghai,Chongqing,Ningbo,Guangzhou,Hongkong ect. all China port
Product Description:
SW-2100 Ophthalmic A/B Scan Ophthalmic Ultrasound AB Scanner Biometer 
With Normal, Vitreous body enhancement, retina observation model, SW-2100 is mainly used for diagnosis of introcular diseases, display the location, shaper range of the focus of infection and relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

Product Name
Ophthalmic A/B Scan
Model No.
SW-2100
B Scan Frequency
10MHz ,Magnetic driven, noiseless
A Scan Frequency
10MHz, with LED
A Scan Precision
±0.04mm
Main Features:

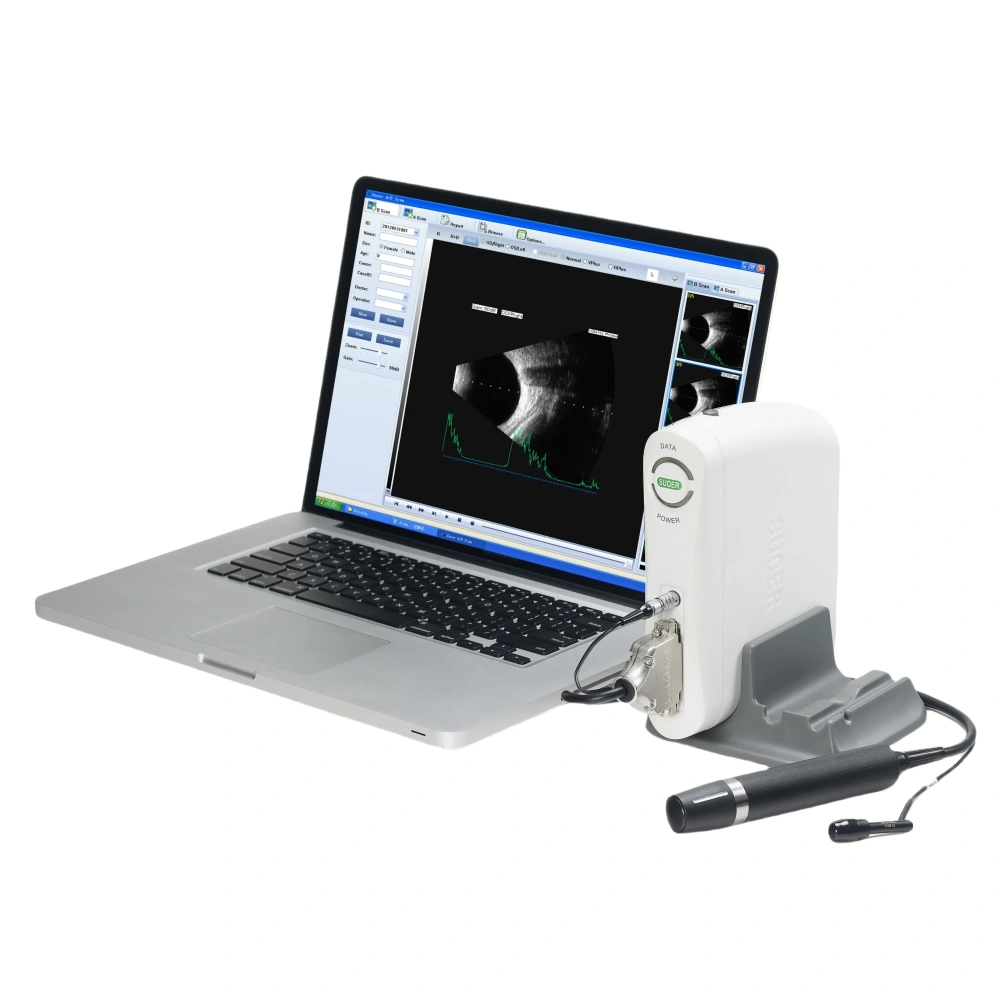

Modular ophthalmic ultrasound platform, allowing probes to be mixed and matched to meet different needs.

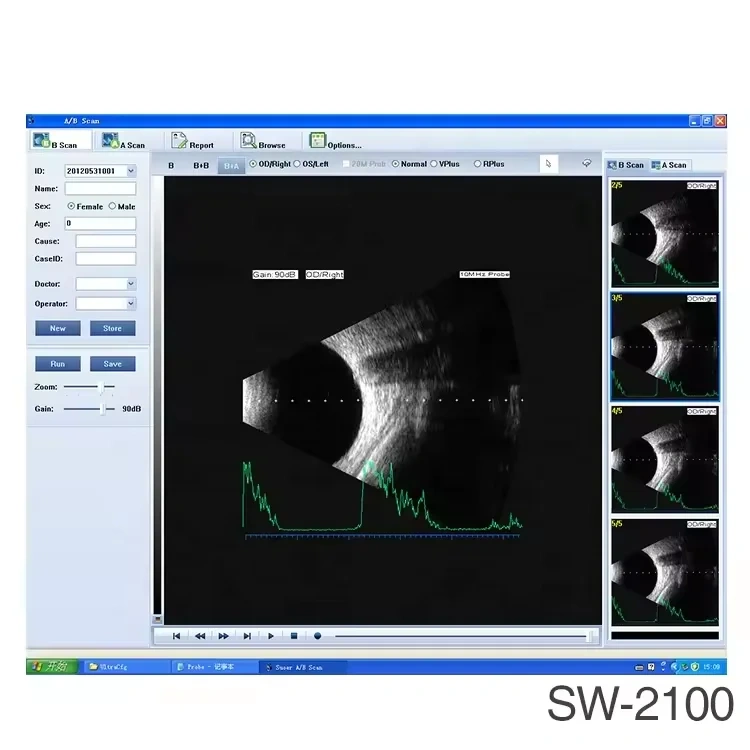

Easy-to-use work station software, friendly user interface.

Industry-leading image quality and measurement accuracy.

Support DICOM 3.0



Specification:
Note:Specifications and design are subject to change without notice.

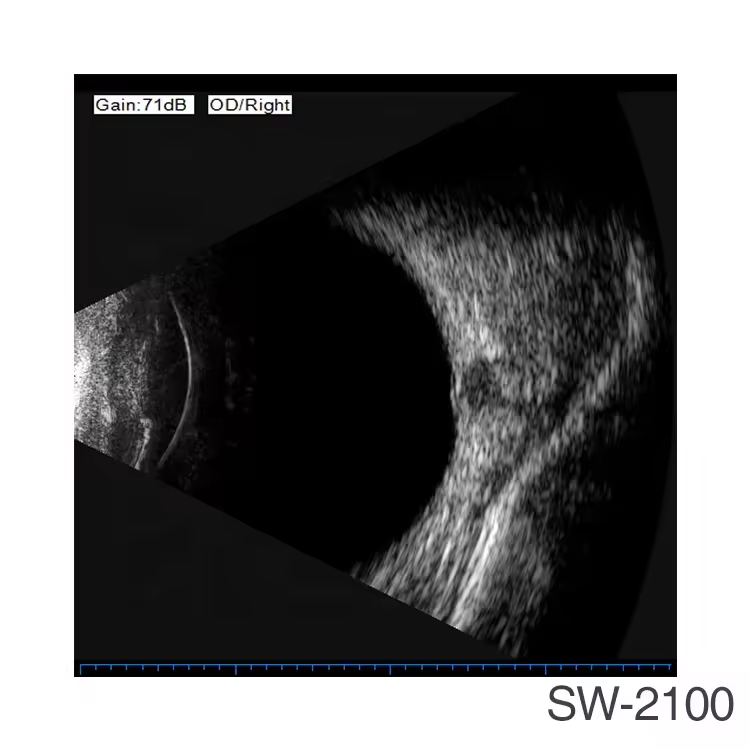

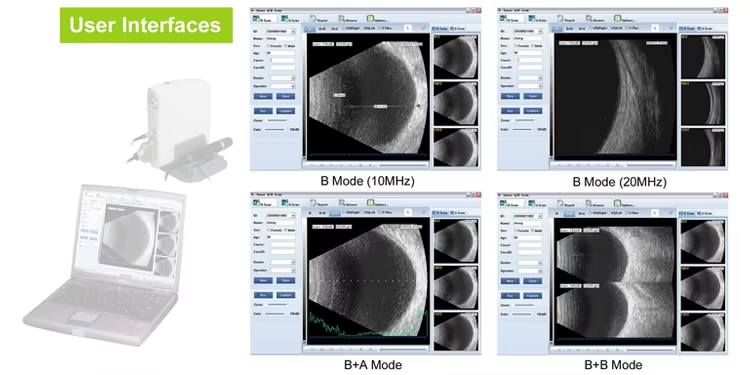

B Scan
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Scanning angle: 53°
Resolution: Axial ≤ 0.2mm, Lateral ≤ 0.3mm
Geometry position precision: Horizontal ≤ 3%, Vertical ≤ 2%
Depth: 60mmGray levels: 256
Adjustable gain: 30dB ~ 105dB
Time gain control (TGC): -15dB ~ +15dBUp to 100 images playback, support video export in AVI format
Magnification function: Multi-stage continuous magnification, real-time magnification
Image analysis tools: false colors, areas, angles, lengths, markers, comments

A Scan
Frequency: 10MHz, with LED
Depth: 40mm
Precision: ±0.04mm
Measurement parameters: Anterior chamber depth, Lens thickness, Vitreous thickness, Axial length
Adjustable gain: 30dB ~ 105dB
Time gain control (TGC): -15dB ~ +15dB
Record up to 10 measurement results, automatic calculation of average, standard deviation, maximum and minimum of the results
Eye types: phakic, aphakic, PMMA, silicone, acrylic
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS

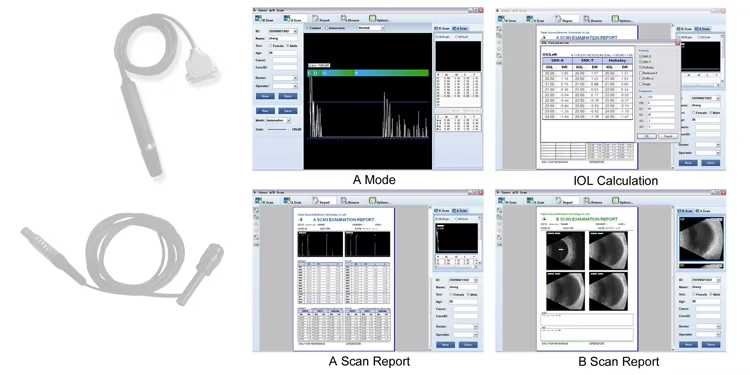

Software and Images Library
