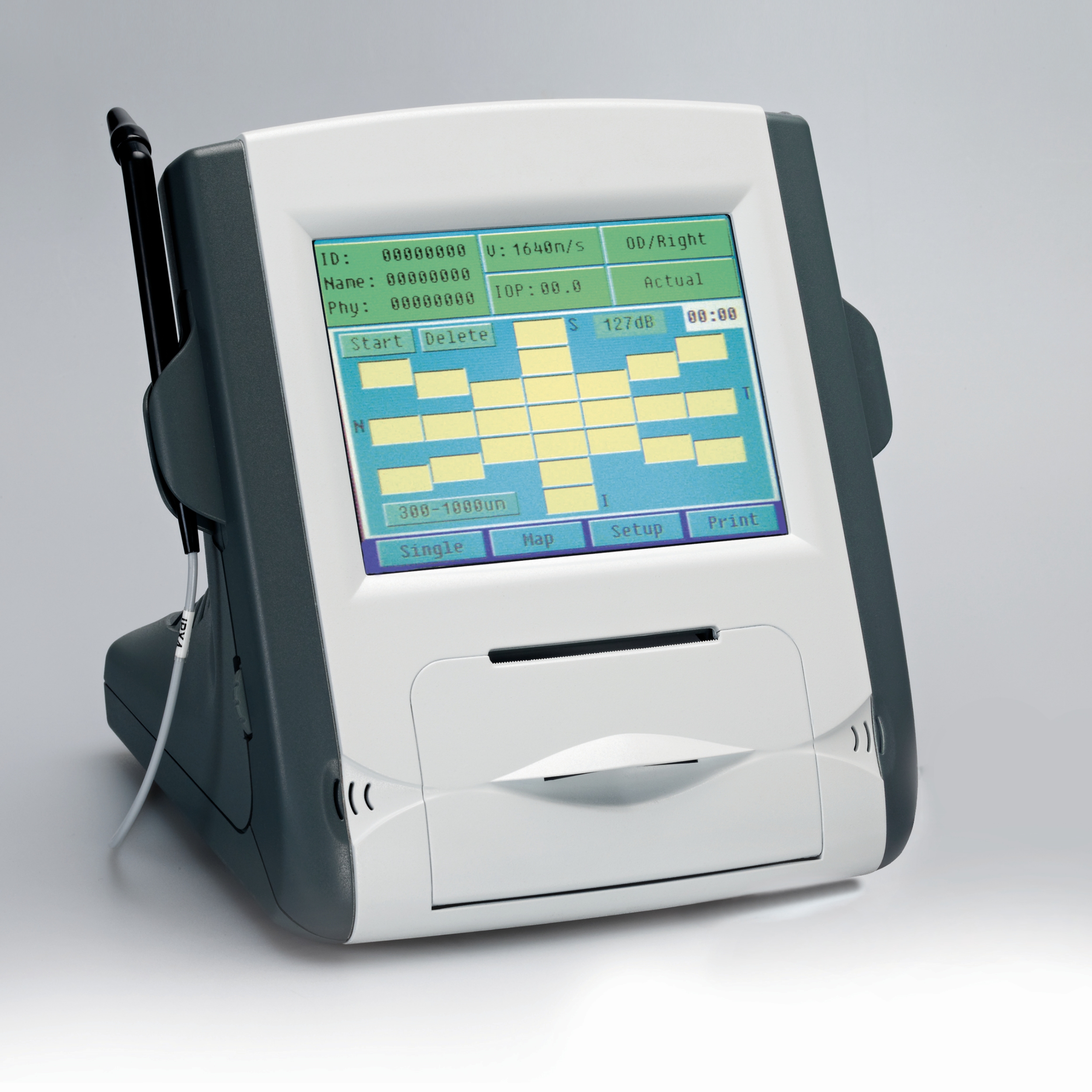

SW-1000P Ophthalmic Ultrasound P SCAN Ultrasonic Pachymeter for Ophthalmology without Biometer

No.1601235798
SKU:
SW-1000AP Ophthalmic Ultrasound A/P SCAN Biometer(A Scan)+Pachymeter(P Scan)

●AP Scan SW-1000AP: is a precise ultrasonic biometer and pachymeter for ophthalmology. The A scan is designed for detecting axial length, depth of anterior chamber, thickness of lens and calculating the IOL. The P scan is designed for detecting thickness of cornea.

● A Scan SW-1000A: with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness,as well as intra-ocular lens calculation.

● Pachymeter SW-1000P: with the central area and the peripheral areas gain automatic
compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.
$1,800.00 $1,800.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
1/1
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • SW-1000P Ophthalmic Ultrasound P SCAN  Ultrasonic Pachymeter for Ophthalmology without Biometer
  • Description

Key attributes

Place of Origin
Chongqing, China
Warranty
1 Year
Customized support
OEM, ODM
Brand Name
Luminous
Type
P Scan
Material
Metal/ Plastic/Glasses Lens
Power
Power Code
Voltage
100-240V,1.2-0.6A, 50-60Hz
Name
Ophthalmic Ultrasound P SCAN
Model
SW-1000P
Certificate
CE ISO
P Probe Frequency
20MHz
Printer
Yes
Package Size
26*26*28cm
Gross Weight
3KG
Net Weight
2KG

Packaging and delivery

Port
Shenzhen,Shanghai,Chongqing,Ningbo,Guangzhou,Hongkong ect. all China port
Product Description:
SW-1000P Ophthalmic Ultrasound P SCAN Pachymeter(P Scan),without Biometer(A Scan)
● A Scan SW-1000A: with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness,as well as intra-ocular lens calculation.

● Pachymeter SW-1000P: with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.

●AP Scan SW-1000AP: is a precise ultrasonic biometer and pachymeter for ophthalmology. The A scan is designed for detecting axial length, depth of anterior chamber, thickness of lens and calculating the IOL. The P scan is designed for detecting thickness of cornea.
Model No.
Probes
SW-1000P
P Probe
SW-1000A
A Probe
SW-1000AP
A Probe+P Probe

Main Features:
P Scan
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured value and actual value

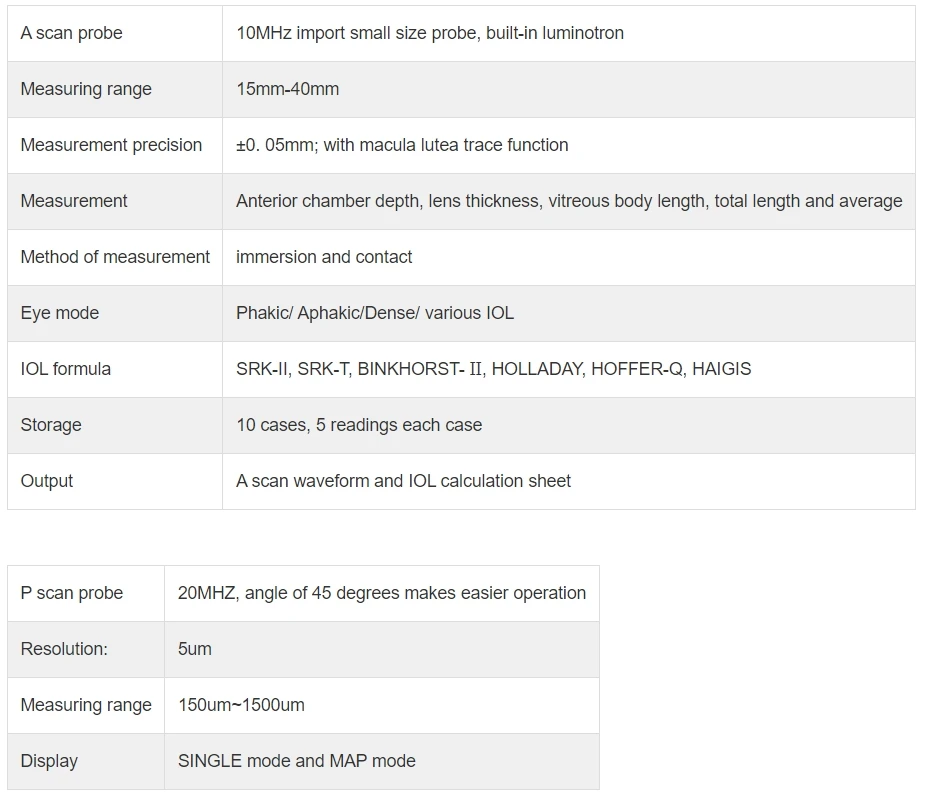

Specification:
P Scan
P Scan Probe: 20MHZ, angle of 45 degrees makes easier operation
Resolution: 5umMeasuring Range: 150um~1500um
Display: SINGLE mode and MAP mode
Curve Freezing: Manual/Auto mode, controlled by pedal
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured value and actual value
Can input name, ID and operator’s name
Large colorful liquid-crystal screen, touch screen input, easy operation
Built-in speed thermal printer

Other Information:
Power supply : 100-240V~ 1.2-0.6A
Frequency:50-60Hz
Adapter output: DC12.8V 3.0A
Net wegith:2.0kg
Gross weight:3.0kg
Packing size:26*26*28cm

More Photos and Images Library

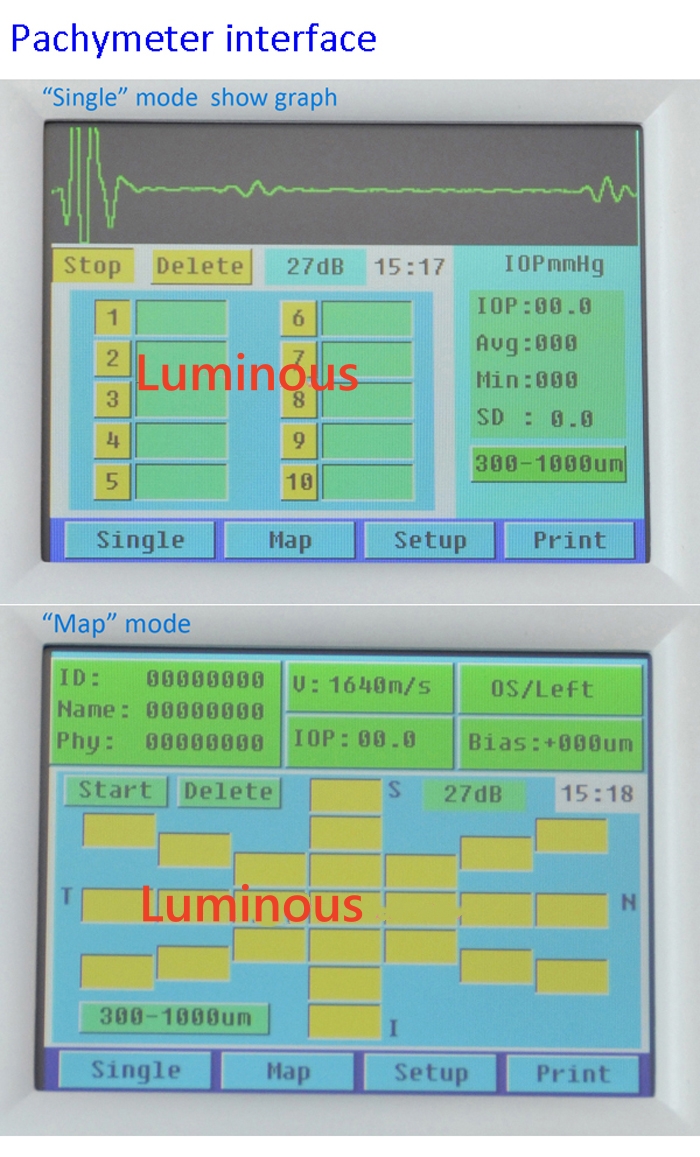

P Scan Function Screen

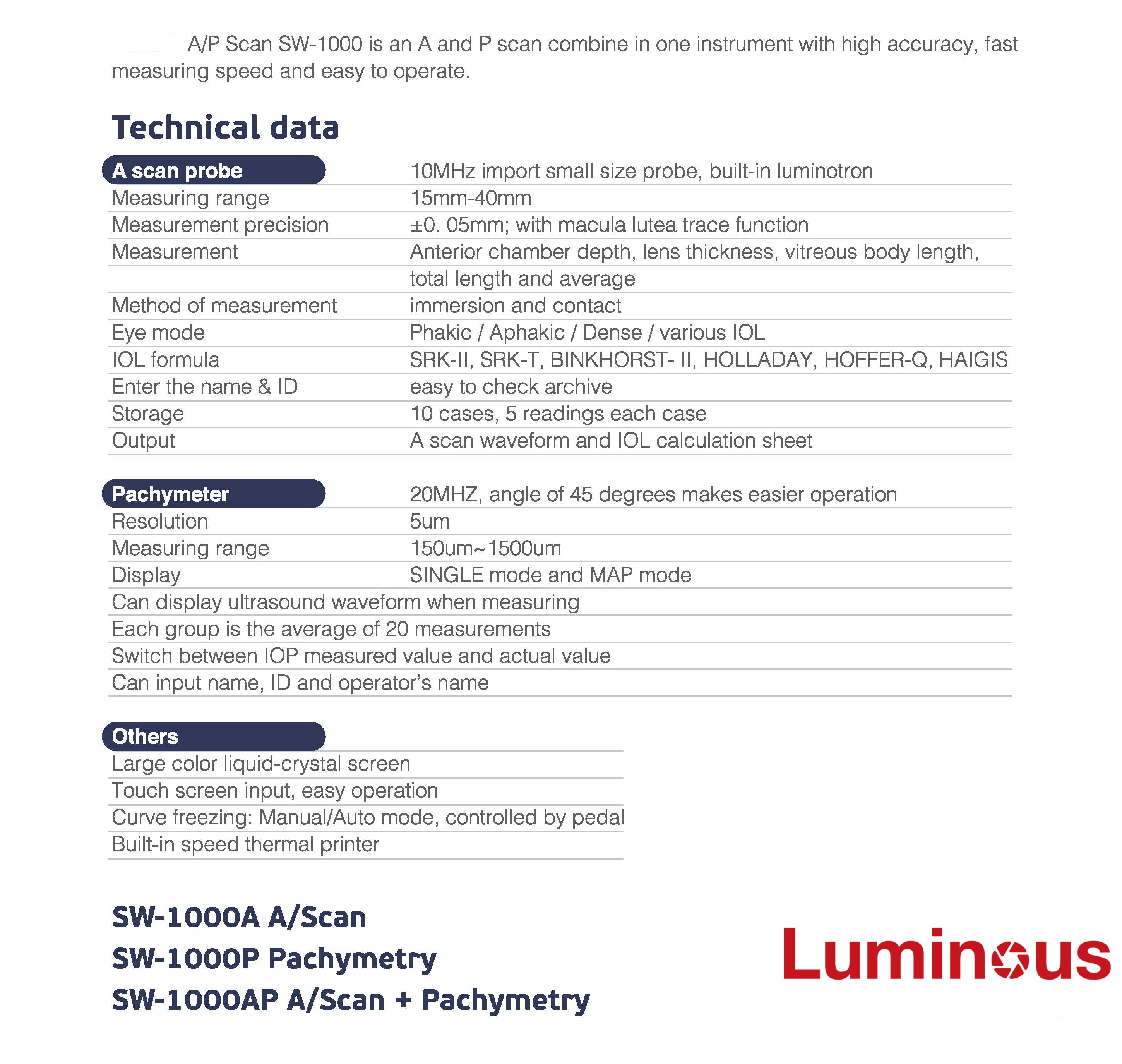

Brochure

Why Choose Us

Luminous Vision Co. Ltd, our company is one stop shop for ophthalmology,optometry,and medical products.We have been in the field  for 10+ years,have accumulated rich experience and customer satisfaction in the area.In our shop,you can get professional suggestions,comprehensive range of products and services to meet your every requirement.Whether it's products, services, or solutions, we have you covered.



FAQ

  1. Who are we?

We are based in ChongQing, China, we provide one stop shop for ophthalmology, optometry, and medical products.We have been in the field of ophthalmology and optical since 2012,have accumulated rich experience in the area.In our shop,we will provide professional suggestions,different products and best service.You will save time and save money.



  1. How can we guarantee quality?

We have strict product process and quality control for every producing for every products. Always a pre-production sample before mass production;Always final Inspection before shipment;



  1. What can you buy from us?

One-stop shop for ophthalmology, optometry, and medical products.All kinds of ophthalmology, optometry products you needs.And also we provide good service for your products.



  1. Why should you buy from us not from other suppliers?

Throughout 12 years in business,we have built ourselves as a value-oriented,service minded,ophthalmic equipment distributor and glasses&lens process equipment with reputation.we become the "Chinese state-of-the-art ophthalmic instrument and your practice"



  1. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery;

Accepted Payment Currency:USD,EUR,CAD,CNY;

Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Spanish etc.
