SW-1000A Ophthalmic Ultrasound A SCAN Ultrasonic Biometer for Ophthalmology without P Scan

No.1601235680
SKU:
SW-1000A Ophthalmic Ultrasound A SCAN Biometer(A Scan),without Pachymeter(P Scan)

● A Scan SW-1000A: with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness,as well as intra-ocular lens calculation.

●AP Scan SW-1000AP: is a precise ultrasonic biometer and pachymeter for ophthalmology. The A scan is designed for detecting axial length, depth of anterior chamber, thickness of lens and calculating the IOL. The P scan is designed for detecting thickness of cornea.
● Pachymeter SW-1000P: with the central area and the peripheral areas gain automatic
compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.
$1,750.00 $1,750.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
1/1
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • SW-1000A Ophthalmic Ultrasound A SCAN  Ultrasonic Biometer for Ophthalmology without P Scan
  • Description

Key attributes

Place of Origin
Chongqing, China
Warranty
1 Year
Customized support
OEM, ODM
Brand Name
Luminous
Eye Mode
Phakic/ Aphakic/Dense/ various IOLHAIGIS
Material
Metal/ Plastic/Glasses Lens
Voltage
100-240V,1.2-0.6A, 50-60Hz
Name
Ophthalmic Ultrasound A SCAN
Model
SW-1000A
Certificate
CE ISO
A Probe Frequency
10MHz, with LED
A Scan Precision
±0. 05mm
Warranty
1 Year
Package Size
26*26*28cm
Net Weight
2.0kg
Gross Weight
3KG
MOQ
1

Packaging and delivery

Port
Shenzhen,Shanghai,Chongqing,Ningbo,Guangzhou,Hongkong ect. all China port
Product Description:
SW-1000A Ophthalmic Ultrasound A SCAN Biometer(A Scan),without Pachymeter(P Scan)

● A Scan SW-1000A: with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness,as well as intra-ocular lens calculation.

●AP Scan SW-1000AP: is a precise ultrasonic biometer and pachymeter for ophthalmology. The A scan is designed for detecting axial length, depth of anterior chamber, thickness of lens and calculating the IOL. The P scan is designed for detecting thickness of cornea.
● Pachymeter SW-1000P: with the central area and the peripheral areas gain automatic
compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.
Model No.
Probes
SW-1000A
A Probe
SW-1000AP
A Probe+P Probe
SW-1000P
P Probe

Main Features:
A Scan
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
Enter the name & ID;
Easy to check archive
Specification:
A Scan
A Scan Probe: 10MHz import small size probe, built-in luminotron
Measuring Range: 15mm-40mm
Measurement Precision: ±0. 05mm; with macula lutea trace function
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of Measurement: Immersion and contact
Eye Mode: Phakic/ Aphakic/Dense/ various IOLHAIGIS
IOL Formula: SRK-II、SRK-T、BINKHORST-II、HOLLADAY、HOFFER-Q
Enter the name & ID; easy to check archive
Storage: 10 cases, 5 readings each case
Output: A scan waveform and IOL calculation sheet

Other Information:
Power supply : 100-240V~ 1.2-0.6A
Frequency:50-60Hz
Adapter output: DC12.8V 3.0A
Net wegith:2.0kg
Gross weight:3.0kg
Packing size:26*26*28cm

More Photos and Images Library

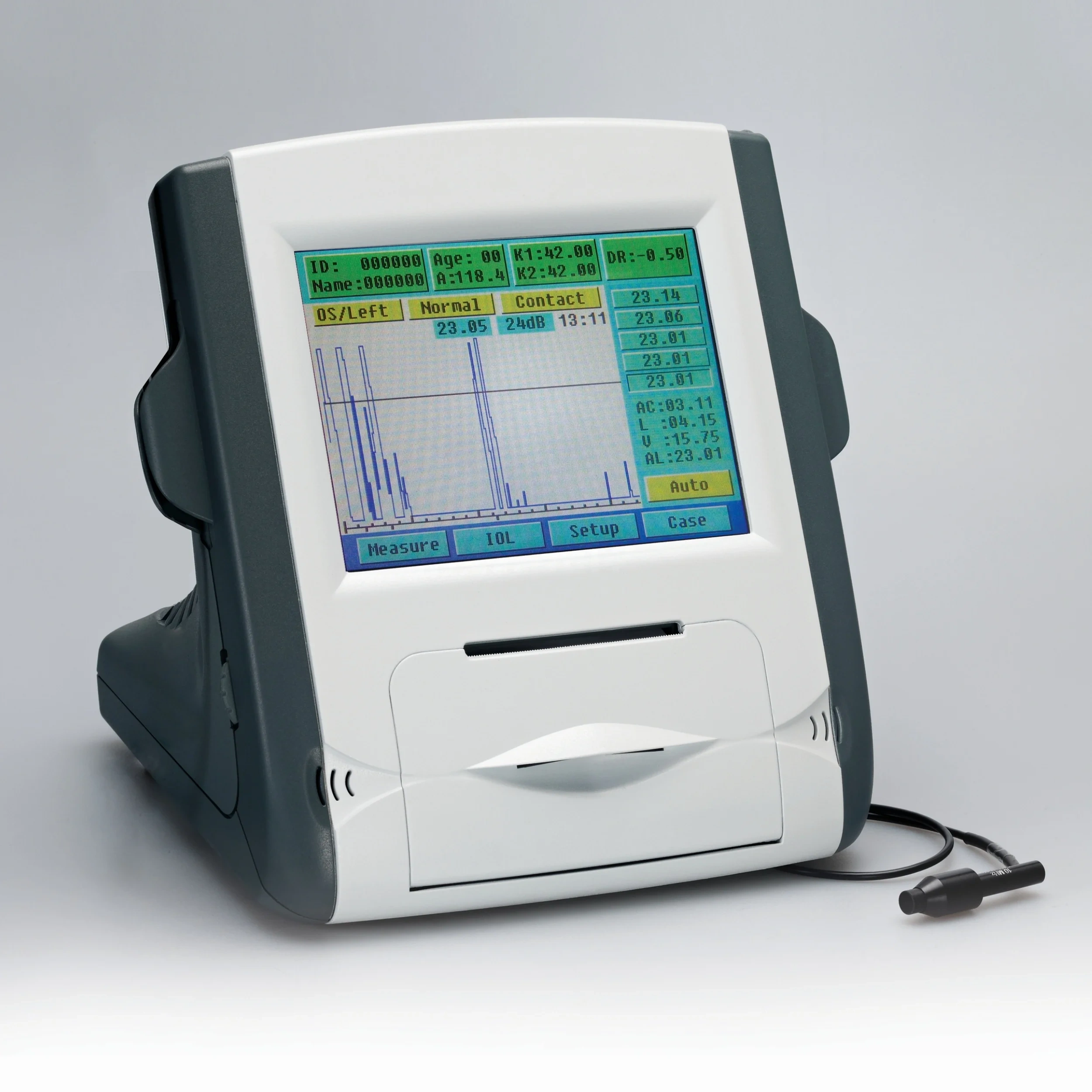

A Scan Function Screen
