Home > Ophthalmic Equipments > Perimeter Accessories > Optical Eye Test Projection Perimeter Auto Perimeter SVF-7000 Visual Field Analyzer

1/1

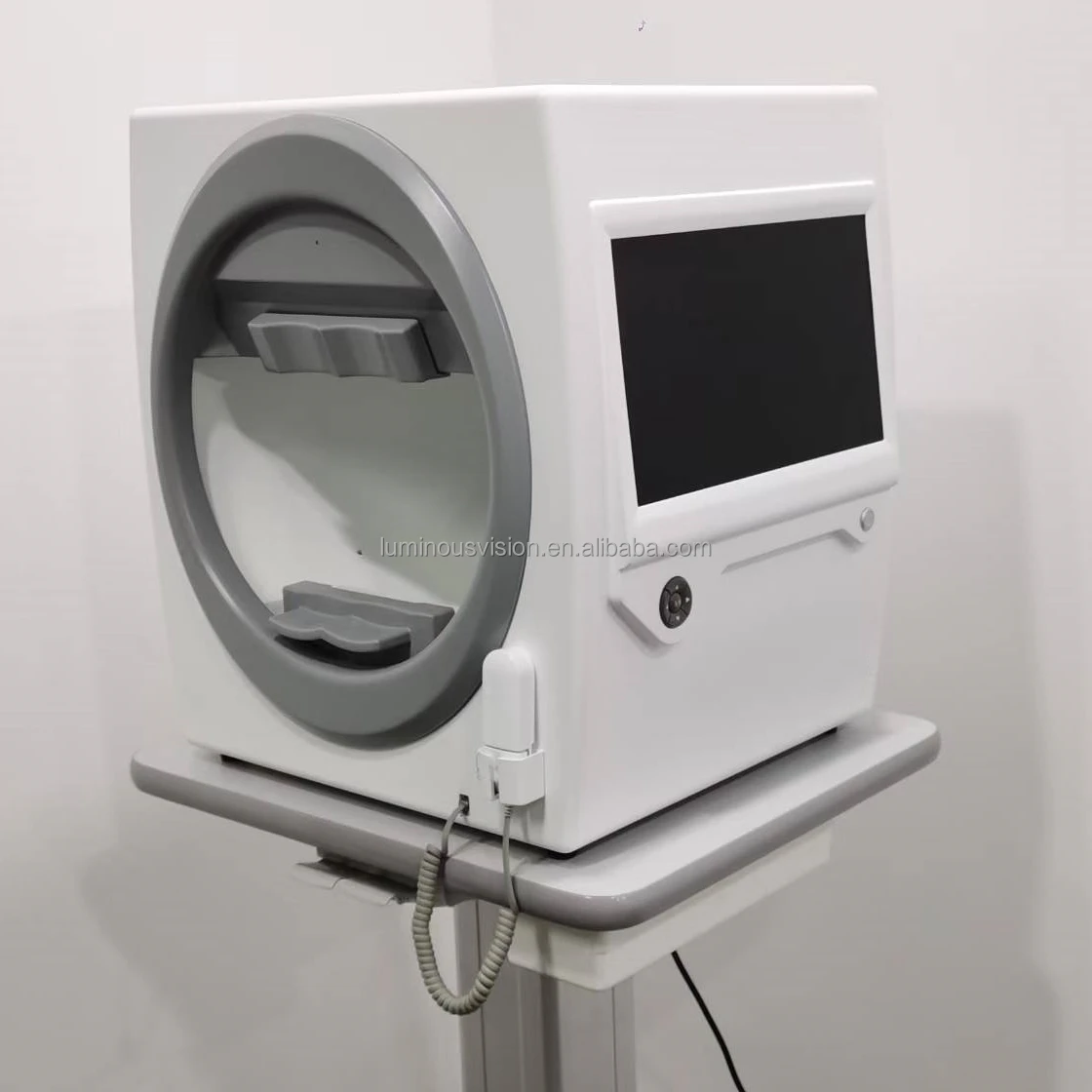

Optical Eye Test Projection Perimeter Auto Perimeter SVF-7000 Visual Field Analyzer

Name: Optical Eye Test Projection Perimeter Auto Perimeter SVF-7000 Visual Field Analyzer
Brand: Luminous Vision Co. Ltd
SKU: 1601255292
Price: 4800 USD
Availability: OutOfStock

No.1601255292

~~$4,800.00~~ $4,800.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Key attributes

Other attributes

Place of Origin

Chongqing, China

Warranty

1 Year

Customized support

OEM, ODM

Brand Name

Luminous

Model Number

SVF-7000

Material

Metal/ Plastic/Glasses Lens

Voltage

AC 100V-240V,50 -60 Hz

Name

Perimeter Visual Field Analyzer

Model

SVF-7000

Certificate

CE FDA

Warranty

1 Year

Products Dimension

480mm*430mm*528mm

Package Dimension

560mm*500mm*670mm

Net Weight

14KG

Gross Weight

21KG

MOQ

1 Unit

Brand

Luminous

Product descriptions from the supplier

SVF-7000 Automatic Perimeter LED Perimeter Static Perimeter Visual Field Analyzer Ophthalmic Eye Exam Equipment

Product Name	Auto Perimeter Visual Field Analyzer
Model No.	SVF-7000
Light Source	LED

Main Feature：

The device is fully compliant to the Goldmann Standards, offering a White-on-White test with a premium LED light source that prolongs the life of the illumination.

The advanced Eye-Tracking system of the device allows the auto-correction of the positioning of the patient during measurements via the assistance of the robotic headrest and chinrest. The device detects when the patient is not looking into the fixation point and automatically adjusts his/her position to realign to that of the fixation point. It also offers the option to be operated and guided via voice commands by the user.

The new Blind Zone Test has been developed to analyze the optic disk inflammation and edema.

The SVF-7000 has a classic report format which is familiar and easy to read by all ophthalmologists world-wide.

Specification

Technical Data	DB Value Range: 0 ~ 40 dB Stimulus Intensity Range: 1 asb ~ 10,000 asb Stimulus Size: Goldman III Stimulus Color: White Stimulus Duration Time: 200ms/Adaptive Max Measurement Range: 90° Test Distance: 30 cm Test Mode: Static Stimulus Quantity: 456 Points Stimulus Plane: Aspherical Surface Background Illumination: White 31.5 asb (10cd/m2)
Advanced Software Operations	Advanced Options: Customize Test Program, Auto Eye Recognition, Blindzone Range Test Stimulus Source: LED Chinrest Control: Touchscreen, Keyboard and Mouse Control, Button Control Head Movement: Chinrest and Headrest move simultaneously
Computer Specification	CPU: 1.6 GHz RAM: 4GB Hard Disk: 120GB Operational System: Windows 10 Display: 14” LCD Touchscreen Network: Wi-Fi, Ethernet
Data Export	Methods: DICOM 3.0, USB
Electrical and Environmental	Voltage/Frequency: AC 100V – 240V / 50 ~ 60 Hz
Test Report	Classic Test report: Test report in Classic format, can be easily read and understood by doctors worldwide.
