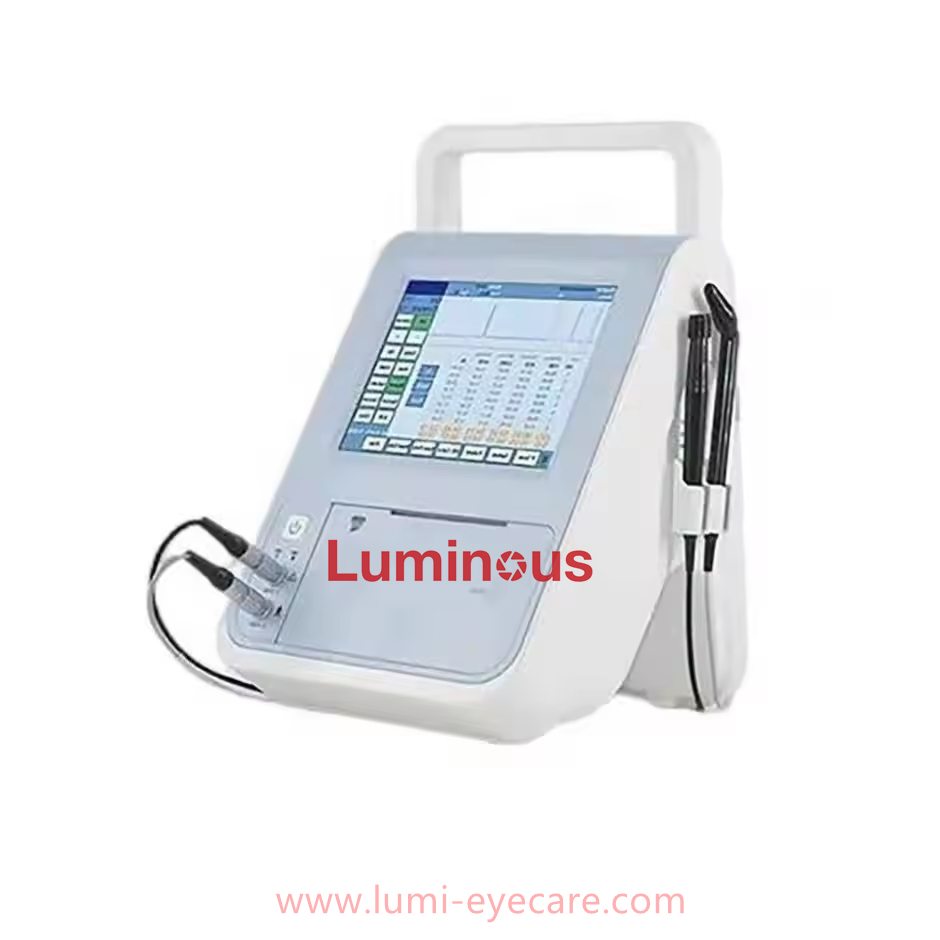

OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional

No.1601236344
SKU:
Pachymeter P Scan OD1-P is a P scan with high accuracy, fast measurement speed and easy to operate.OD1-P is a precise ultrasonic pachymeter for ophthalmology. The P scan is designed for detecting thickness of cornea.
$1,800.00 $1,800.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
0 in stock
Add to Favorites
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
1/1
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • OD1-P Ophthalmic Ultrasound Pachymeter P SCAN P Probe Pachy Meter, Eye Ultrasound A Scan Biometer is Optional
  • Description

Key attributes

Place of Origin
Chongqing, China
Warranty
1 Year
Customized support
OEM, ODM
Brand Name
Luminous
Type
P Scan
Material
Metal/ Plastic/Glasses Lens
Power
Power Supply
Voltage
100-240V,1.2-0.6A, 50-60Hz
Name
Ophthalmic Ultrasound A/P SCAN
Model
OD1-P
Certificate
CE ISO
P Scan Precision
±0.005mm
P Probe Frequency
20MHz
Warranty
1 Year
Package Size
43*26*37cm
Gross Weight
4.2KG
Net Weight
1.7KG
MOQ
1

Packaging and delivery

Port
Shenzhen,Shanghai,Chongqing,Ningbo,Guangzhou,Hongkong ect. all China port
Product Description:

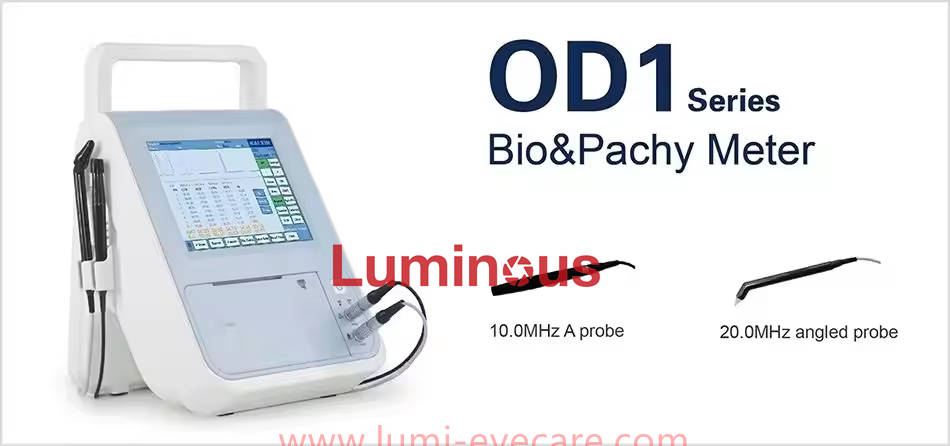

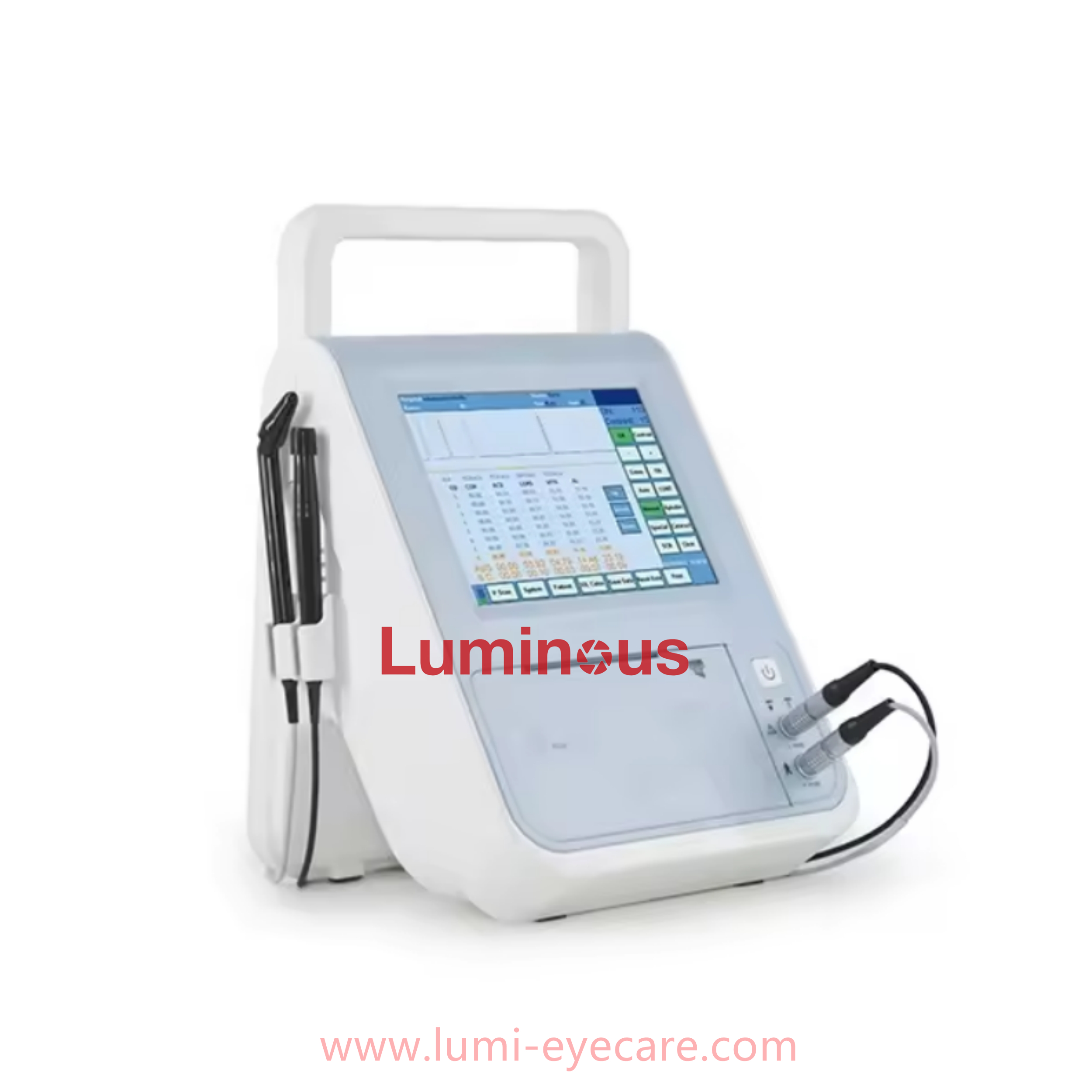

OD1-P Ophthalmic Ultrasound Pachymeter P SCAN ,Biometer(A Scan) is Optional

●AP Scan OD1-AP: is a precise ultrasonic biometer and pachymeter for ophthalmology. The A scan is designed for detecting axial length, depth of anterior chamber, thickness of lens and calculating the IOL. The P scan is designed for detecting thickness of cornea.

● A Scan OD1-A: with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness,as well as intra-ocular lens calculation.

● Pachymeter OD1-P: with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.
Model No.
Probes
OD1-AP
A Probe+P Probe
OD1-A
A Probe
OD1-P
P Probe

Main Features:
Pachymeter P Scan OD1-P is a P scan with high accuracy, fast measurement speed and easy to operate.OD1-P is a precise ultrasonic pachymeter for ophthalmology. The P scan is designed for detecting thickness of cornea.
1) Nearly 20 years ultrasound research history,bring you OD1 series for ophthalmology biometry.

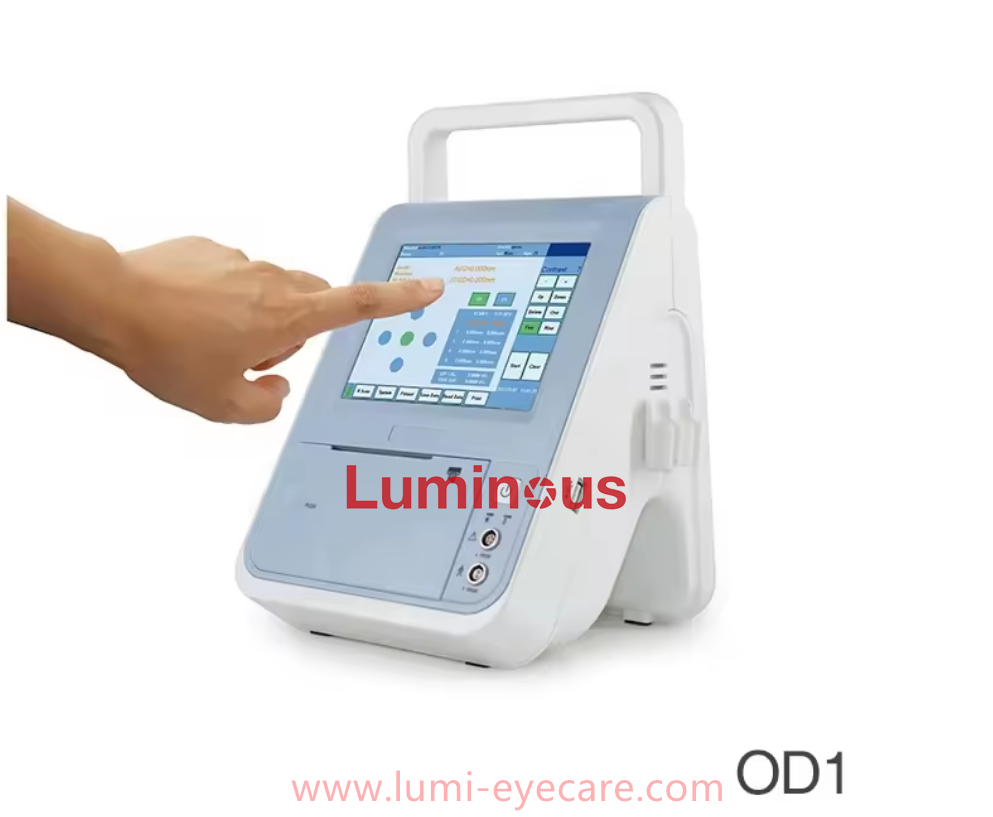

2) 5.7" color LED touch screen,more convenient for your operation.
3) Immersion & contract methods,precise measurement.
4) Built-in thermal printer,realize print anytime.
5) I-station software enable massive storage,report transmission and print.
6 )Sensitive,accurate measurement,show 10 groups with deviation meanwhile.
7) With IOP(intraocular pressure)adjustment after get Tonometer measurement results.

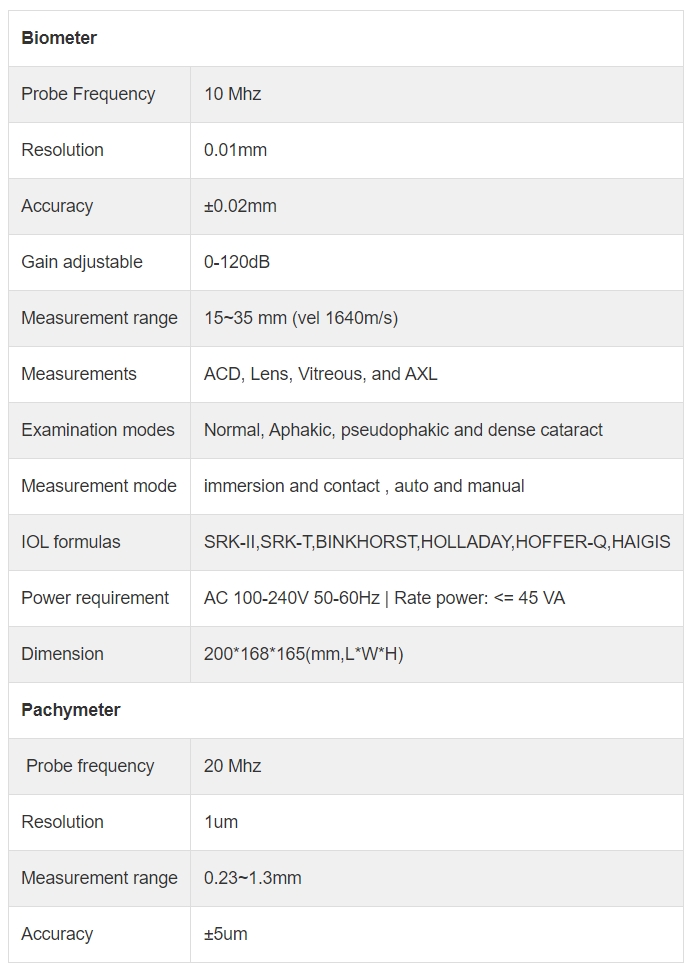

Specification:

P Scan

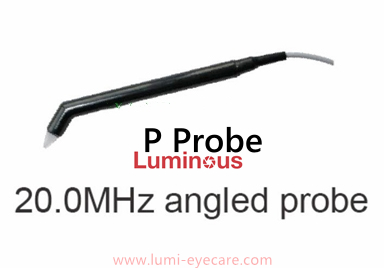

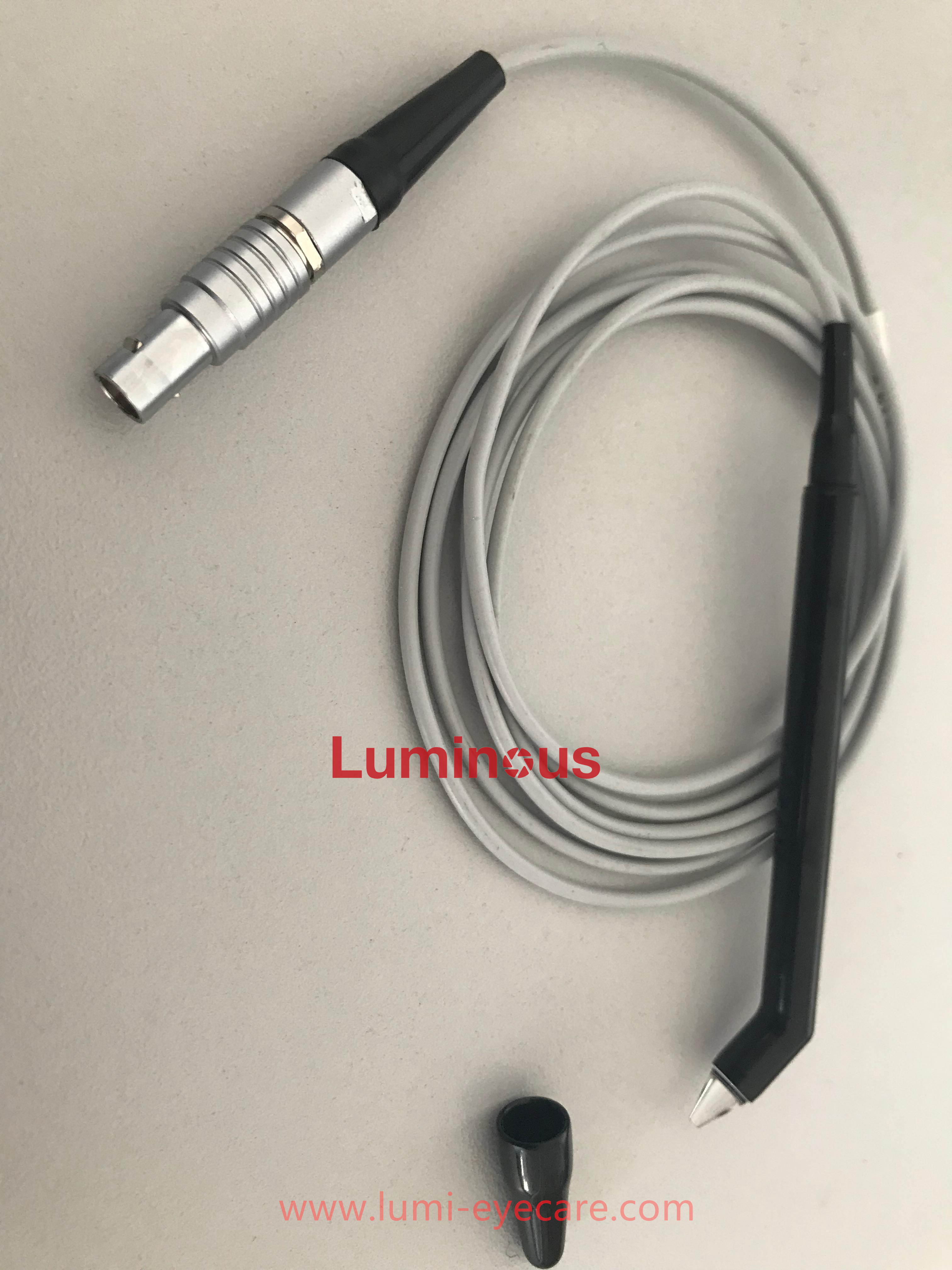

1) 20MHz angled pachymeter probe
2) Resolution:1um
3) Measurement range:0.23~1.2mm
4) Accuracy:±0.005mm
5) Single or nine points measurement,average reading increase accuracy.

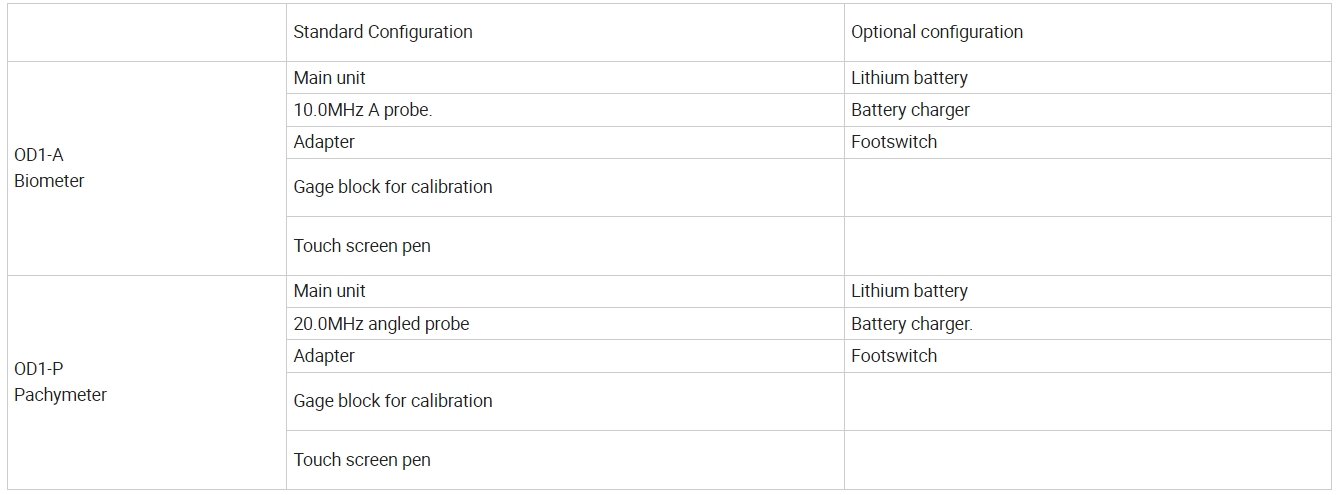

Standard Configuration:
1) Main unit

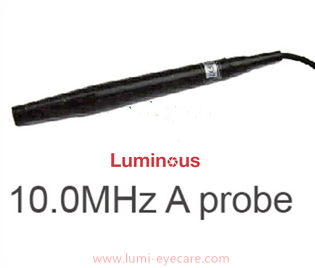

2) 10.0MHz A probe
3) Gage block for A-scan/biometer
4) Power adapter
5) Touch screen pen
6) Screen size:11.5 X 18.5 (cm)

Optional Components:

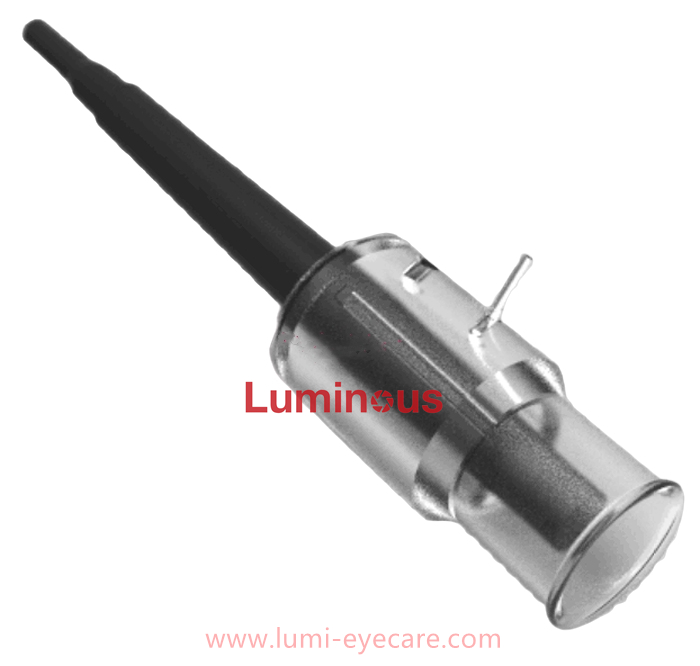

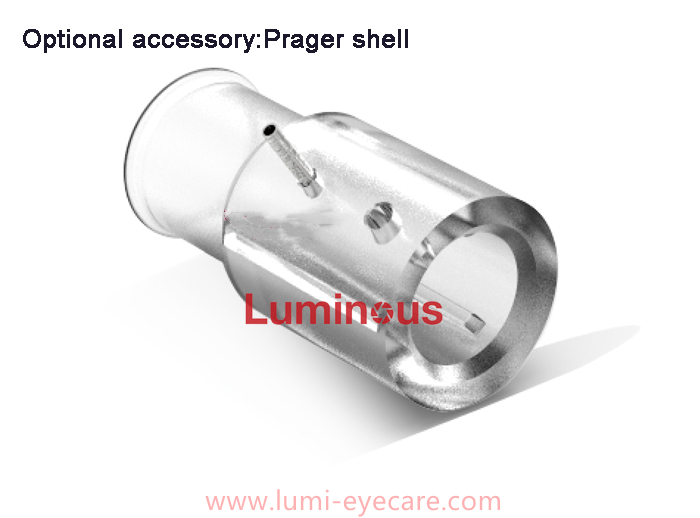

Large lithium batteryBattery chargerImmersion shell

Other Information:
Power Supply : AC 100-240V 50-60Hz
Rate power: <= 45 VA
Carton Size:43*26*37cm, 0.0414cbm
Net Weight:1.7kg
Gross Weight:4.2kg
Net Size: 16.5(W) 25(H) 16.5 (D) (CM)

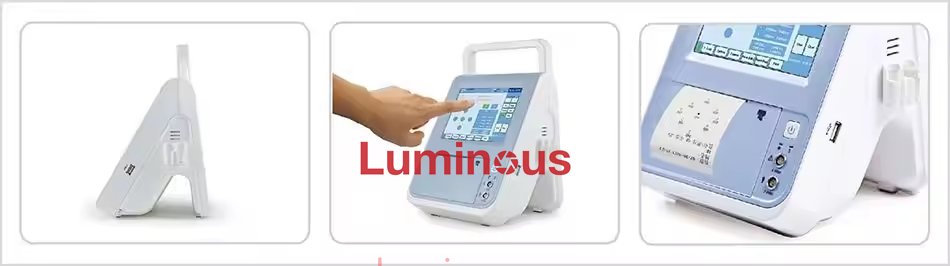

More Photos and Images Library

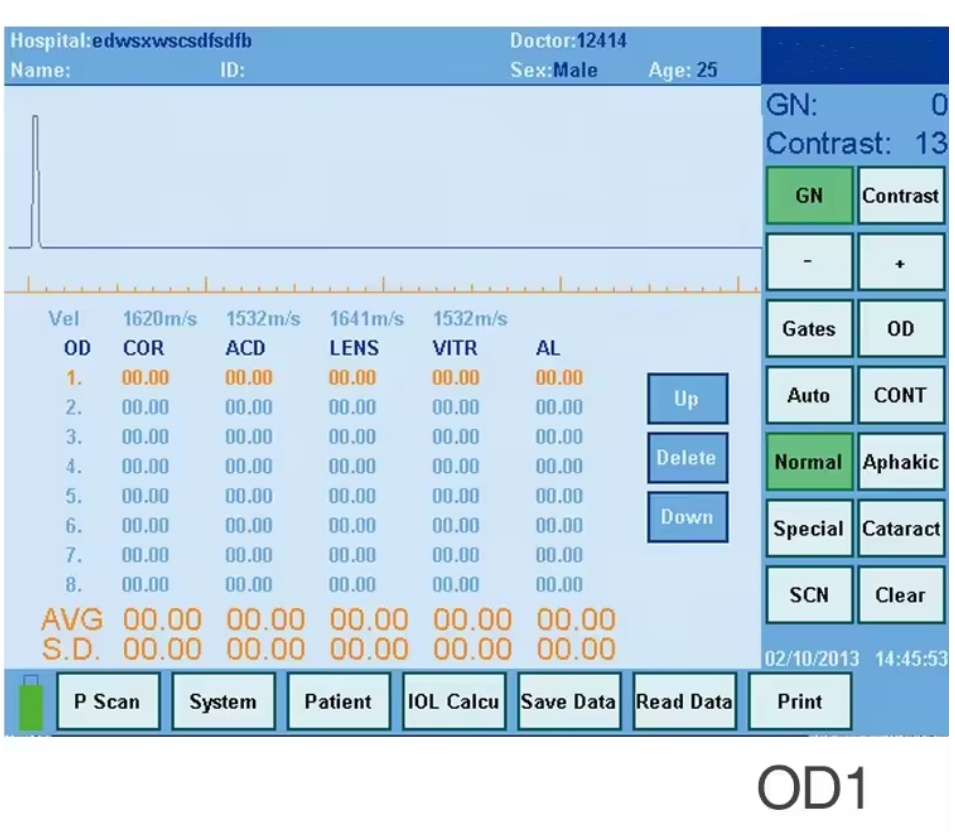

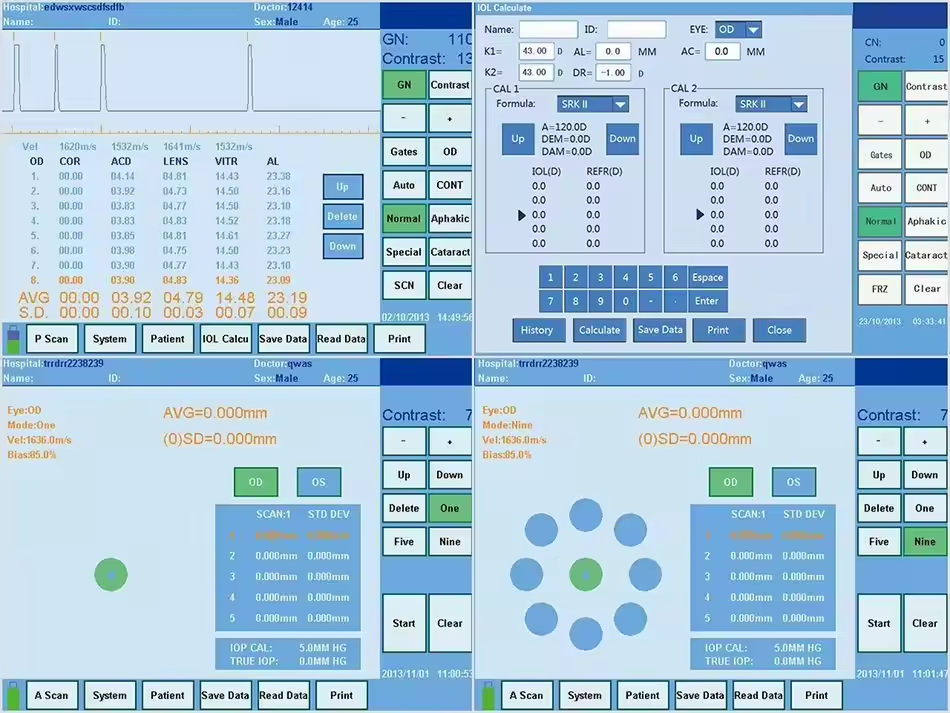

Software Function Screen

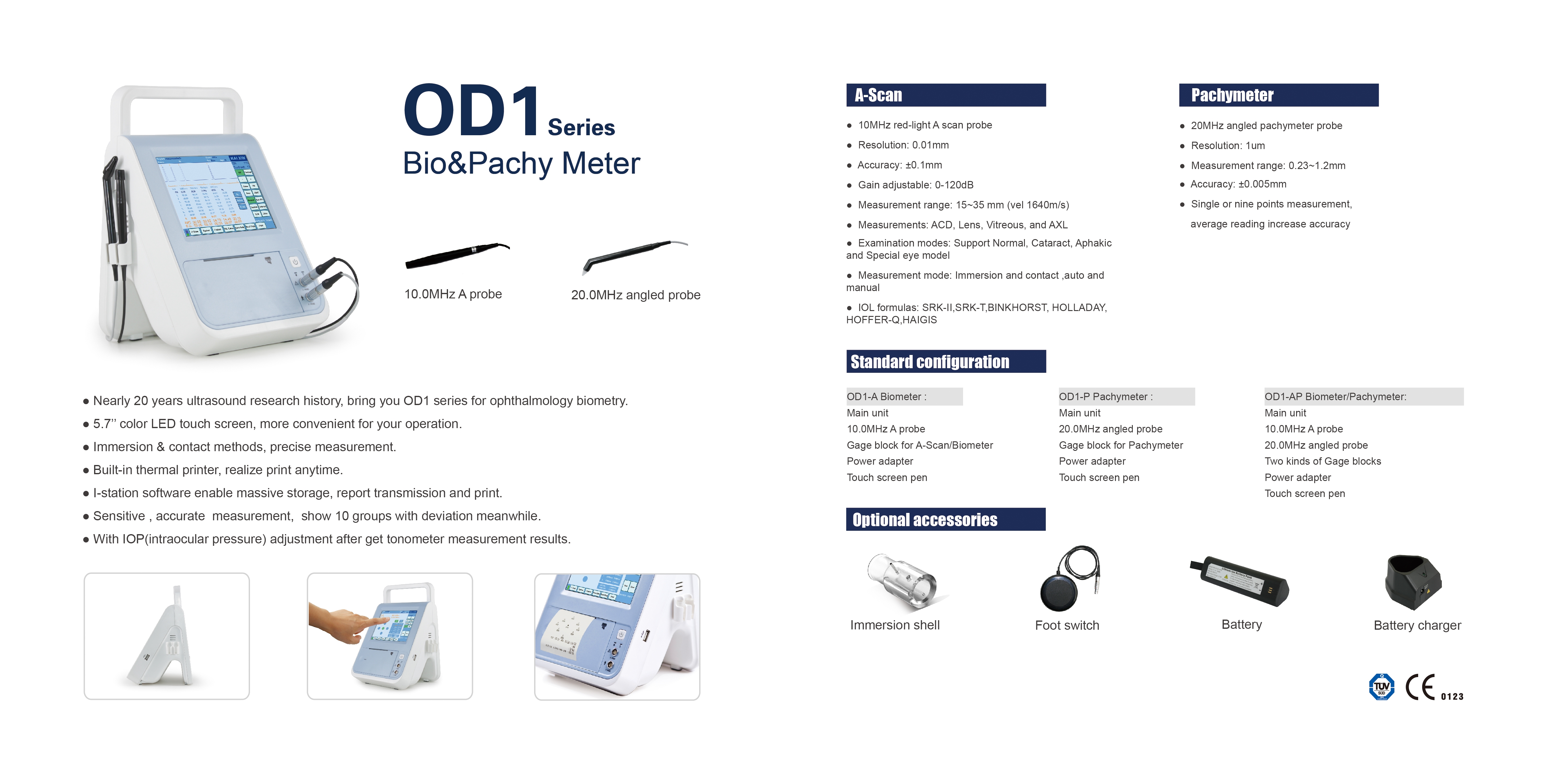

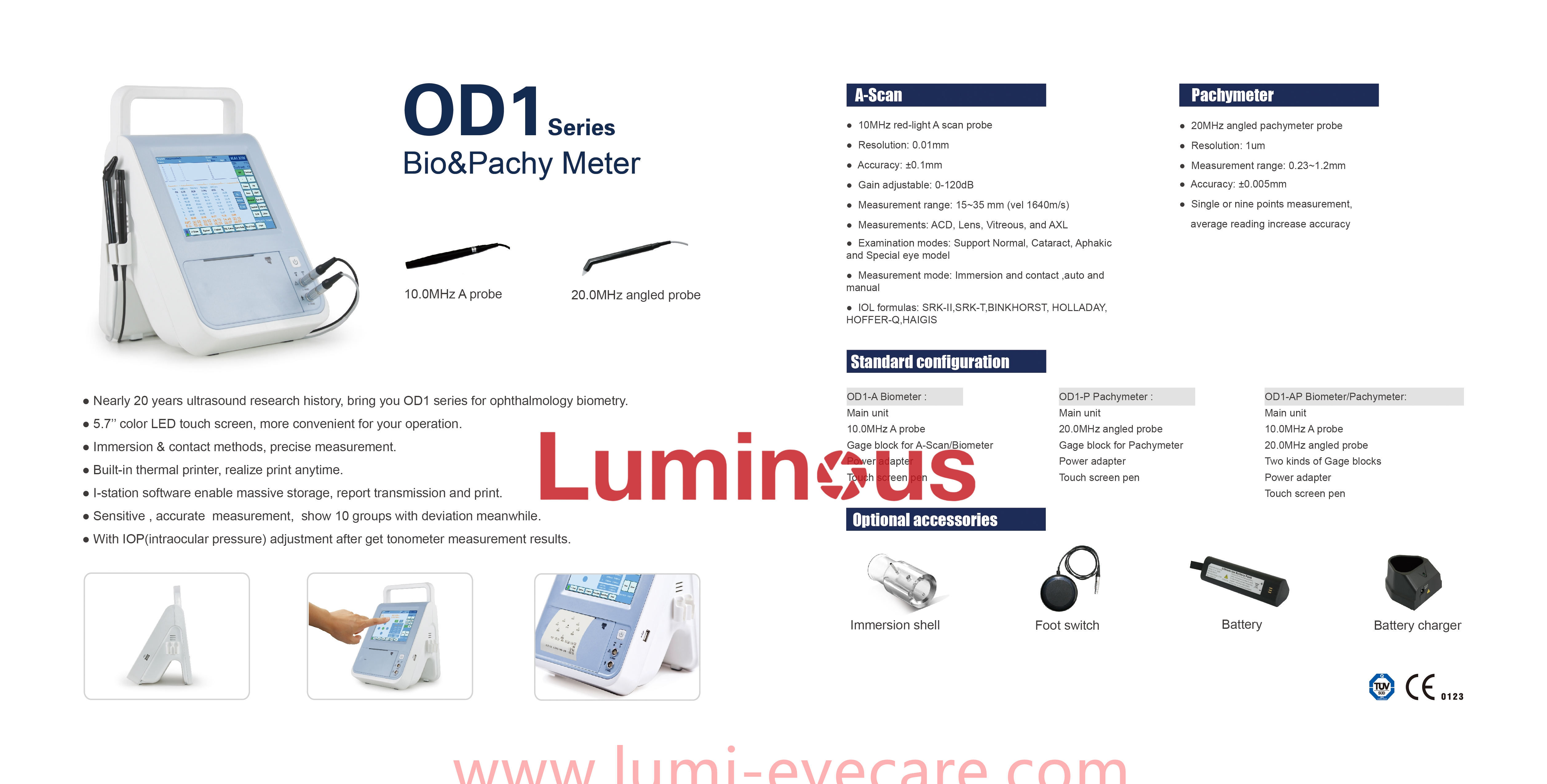

Brochure
