HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table

Name: HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table
Brand: Luminous Vision Co. Ltd
SKU: 1601239246
Price: 2900 USD
Availability: InStock

No.1601239246

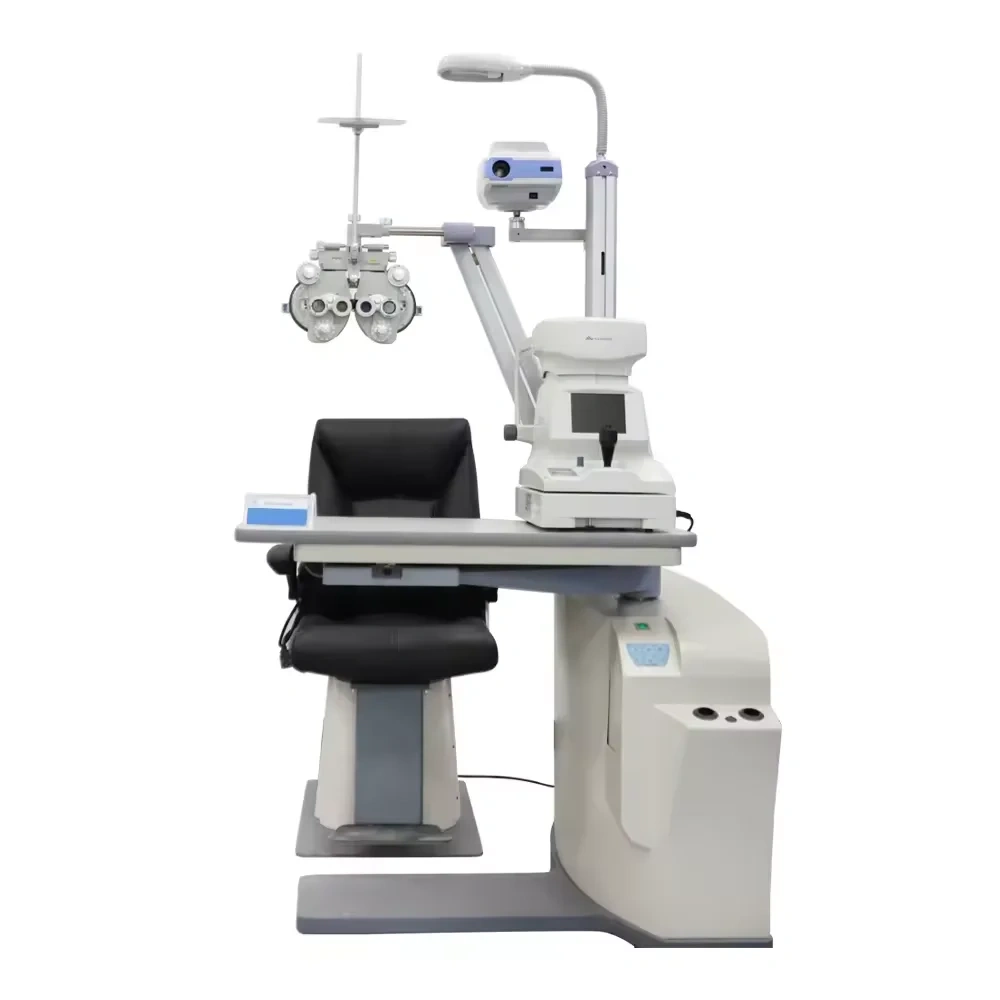

HD-3200 Ophthalmic Refraction Table Unit
Larger table top to accomadate a wide variety of equipment like the auto refractometer, retinal camera, slit lamp etc.
Sliding table makes it easy to align the equipment with the patient when conducting different exam.
Auto motorized swing phoropter arm offers ease of use in operation.
The swiveling table and the control panel are clearly arranged within easy reach.
The HD-3200 is equipped with a safety-stop mechanism called “emergency brake lever” which guarantees patients safety when operating the elevation of tabletop or chair.

~~$3,200.00~~ $2,900.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$

$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$

1/1

$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$
$HD-3200 Ophthalmic Refraction Table Unit Optometry Ophthalmic Unit Optical Combination Table Optical Unit Motorized Table$

Description

Key attributes

Place of Origin

Chongqing, China

Warranty

1 Year

Customized support

OEM, ODM

Brand Name

Luminous

Model Number

HD-3200

Material

Metal/ Plastic/Glasses Lens

Voltage

10.220V/50HZ or 110V/60HZ

Name

Ophthalmic Refraction Chair Unit

Model

HD-3200

Size of Table Top

915*420mm(36"x16.5")

Table Top Sliding Range

0-380mm (0-14.9")

Chair Height Adjustment Range

520-670mm (20.5"-26.4")

Table Rotation Degree

0-90° counter-clockwise

Max. Input Power:

300VA

Voltage

10.220V/50HZ or 110V/60HZ

Net Weight of Whole Table

160kg(352LB)

Warranty

1 Year

Product Description:

HD-3200 Ophthalmic Refraction Chair Unit Optometry Ophthalmic Chair Unit

We provide different Ophthalmic Refraction Chair Unit and motorized tables for optometrists, ophthalmologists, and distributors. If your QTY is bigger,we also can print your LOGO or Label on the table.

Main Features
Perfect working platform for the ophthalmic diagnostic and examination.Larger table top to accomadate a wide variety of equipment like the auto refractometer, retinal camera, slit lamp etc.Sliding table makes it easy to align the equipment with the patient when conducting different exam.Auto motorized swing phoropter arm offers ease of use in operation.The swiveling table and the control panel are clearly arranged within easy reach.The HD-3200 is equipped with a safety-stop mechanism called “emergency brake lever” which guarantees patients safety when operating the elevation of table top or chair.

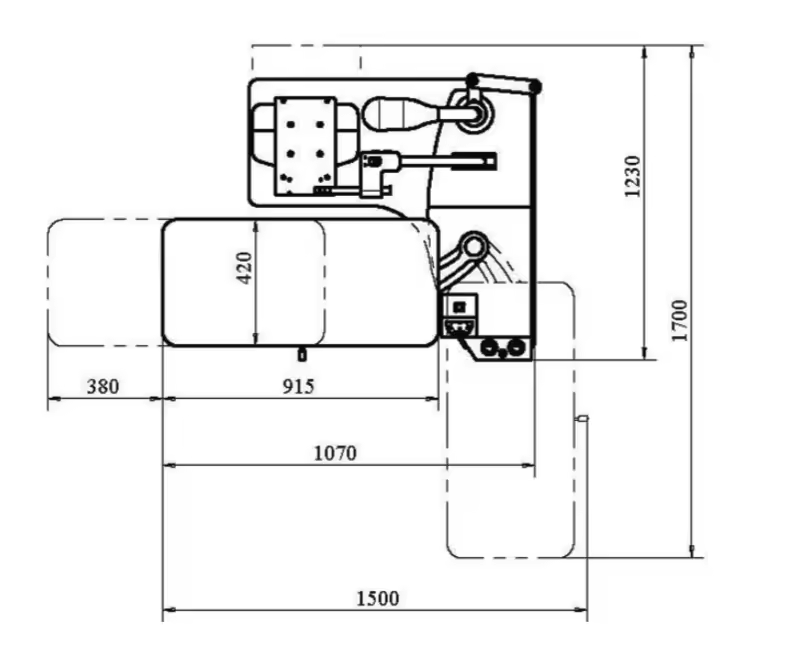

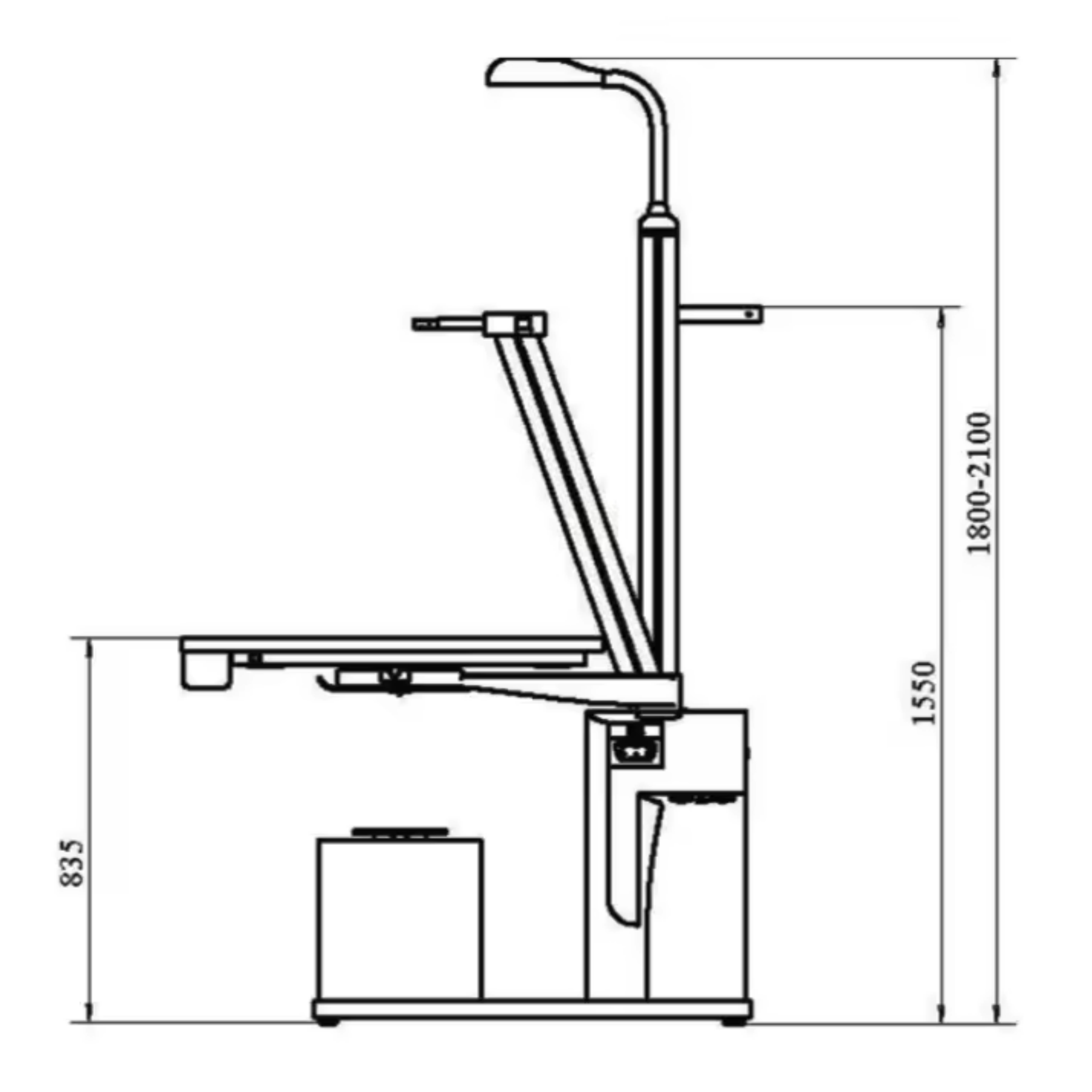

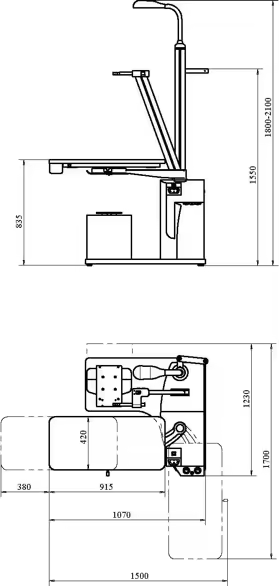

Specification

Product Name	Ophthalmic Refraction Chair Unit
Model No.	HD-3200
Size of Table Top	915*420mm(36”x16.5”)
Table Top Sliding Range	0-380mm (0-14.9”)
Elevation Range of Chair	520-670mm (20.5”-26.4”)
Table Rotation Degree	0-90° counter-clockwise
Charging Port	2 pcs for ophthalmoscope
Top Lamp	0-90°
Charging Port	2 pcs for ophthalmoscope
Top Lamp	9W/220V LED
Fuse	6A 250VAC
Rating Input Voltage	220V/50HZ or 110V/60HZ
Max. Input Power	300VA
Weight	160kg(352LB)

More Image Details

Other Suggestion

There are seven ophthalmic refraction chair unit types for clinics or hospitals.1.HD-700A: manual phoropter; manual linear phoropter arm.2.HD-3200: Seat two pieces of equipment, like auto refractometer, retinal camera, or slit lamp.3.Titan: Seat one auto refractometer or a slit lamp.4.HD-700C: Only seat one auto refractometer; the only unit can elevate or rotate.5.Hulk: Only seat one auto refractometer.6.HD-450S: Seat three pieces of equipment, like auto refractometer, slit lamp, or NCT7.HD-120: a working platform for ophthalmic diagnostic and examination.

Why Choose Us

Luminous Vision Co. Ltd, our company is one stop shop for ophthalmology,optometry,and medical products.We have been in the field for 10+ years,have accumulated rich experience and customer satisfaction in the area.In our shop,you can get professional suggestions,comprehensive range of products and services to meet your every requirement.Whether it's products, services, or solutions, we have you covered.

FAQ

Who are we?

We are based in ChongQing, China, we provide one stop shop for ophthalmology, optometry, and medical products.We have been in the field of ophthalmology and optical since 2012,have accumulated rich experience in the area.In our shop,we will provide professional suggestions,different products and best service.You will save time and save money.

How can we guarantee quality?

We have strict product process and quality control for every producing for every products. Always a pre-production sample before mass production;Always final Inspection before shipment;

What can you buy from us?

One-stop shop for ophthalmology, optometry, and medical products.All kinds of ophthalmology, optometry products you needs.And also we provide good service for your products.

Why should you buy from us not from other suppliers?

Throughout 12 years in business,we have built ourselves as a value-oriented,service minded,ophthalmic equipment distributor and glasses&lens process equipment with reputation.we become the "Chinese state-of-the-art ophthalmic instrument and your practice"

What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,CAD,CNY;

Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Spanish etc.
