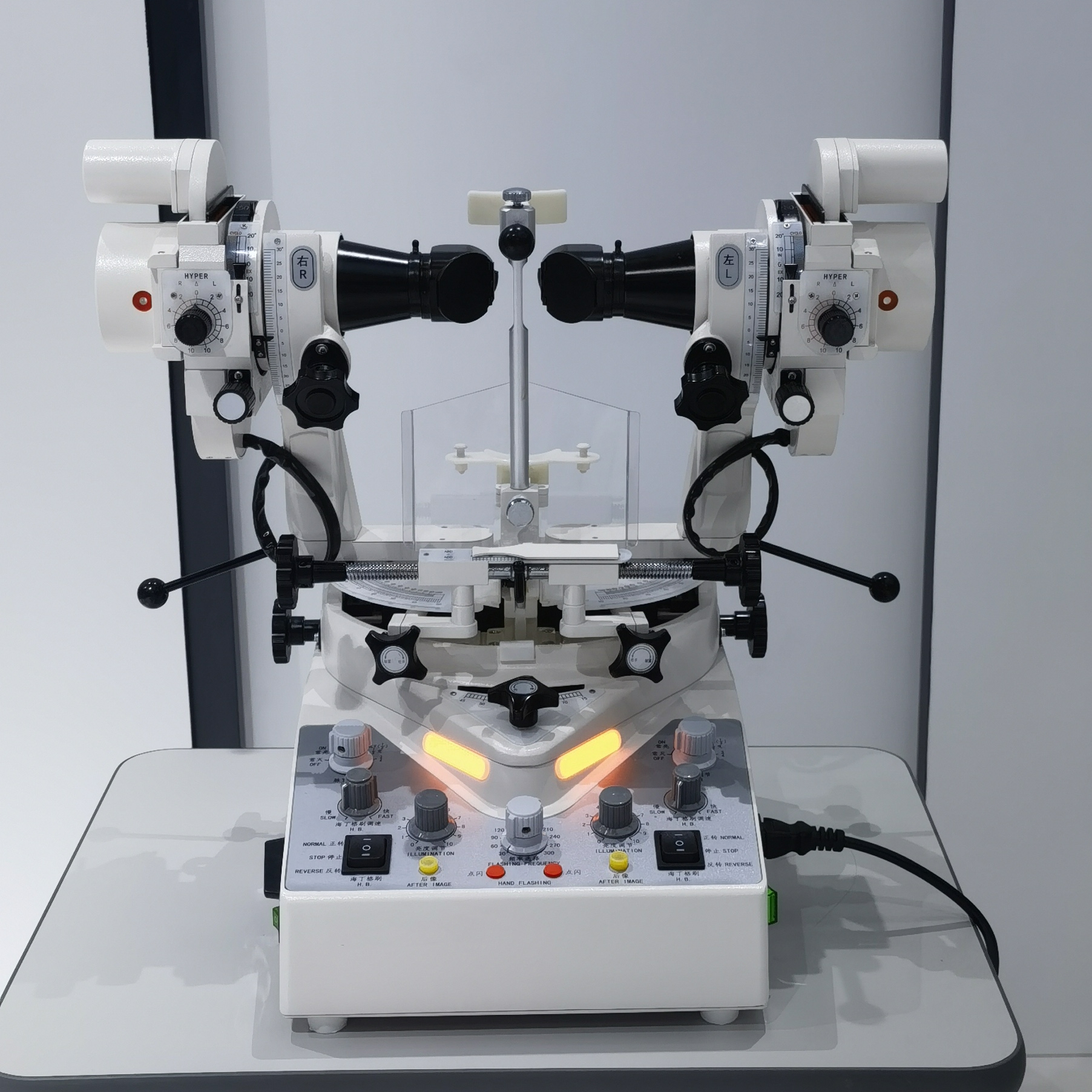

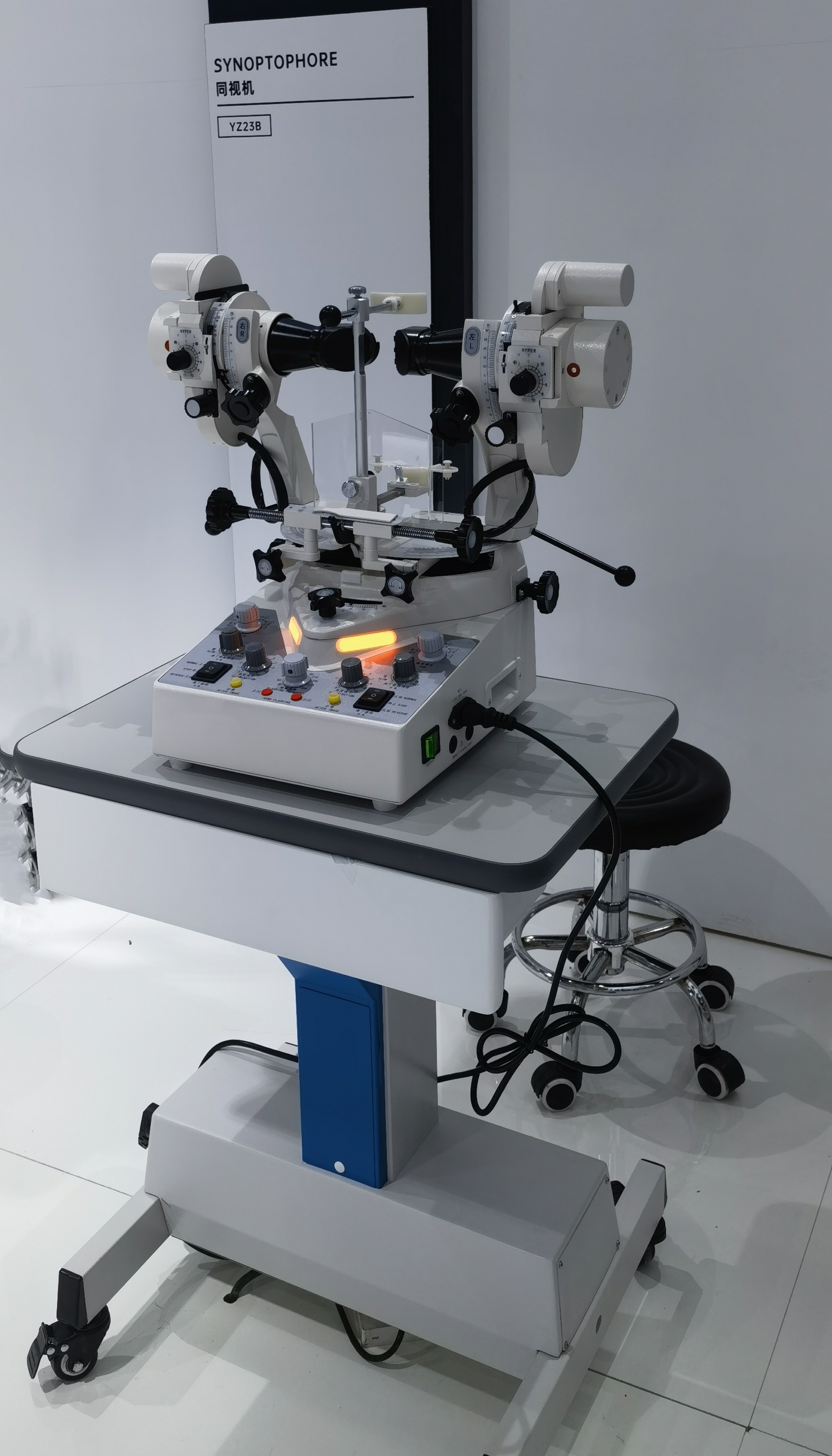

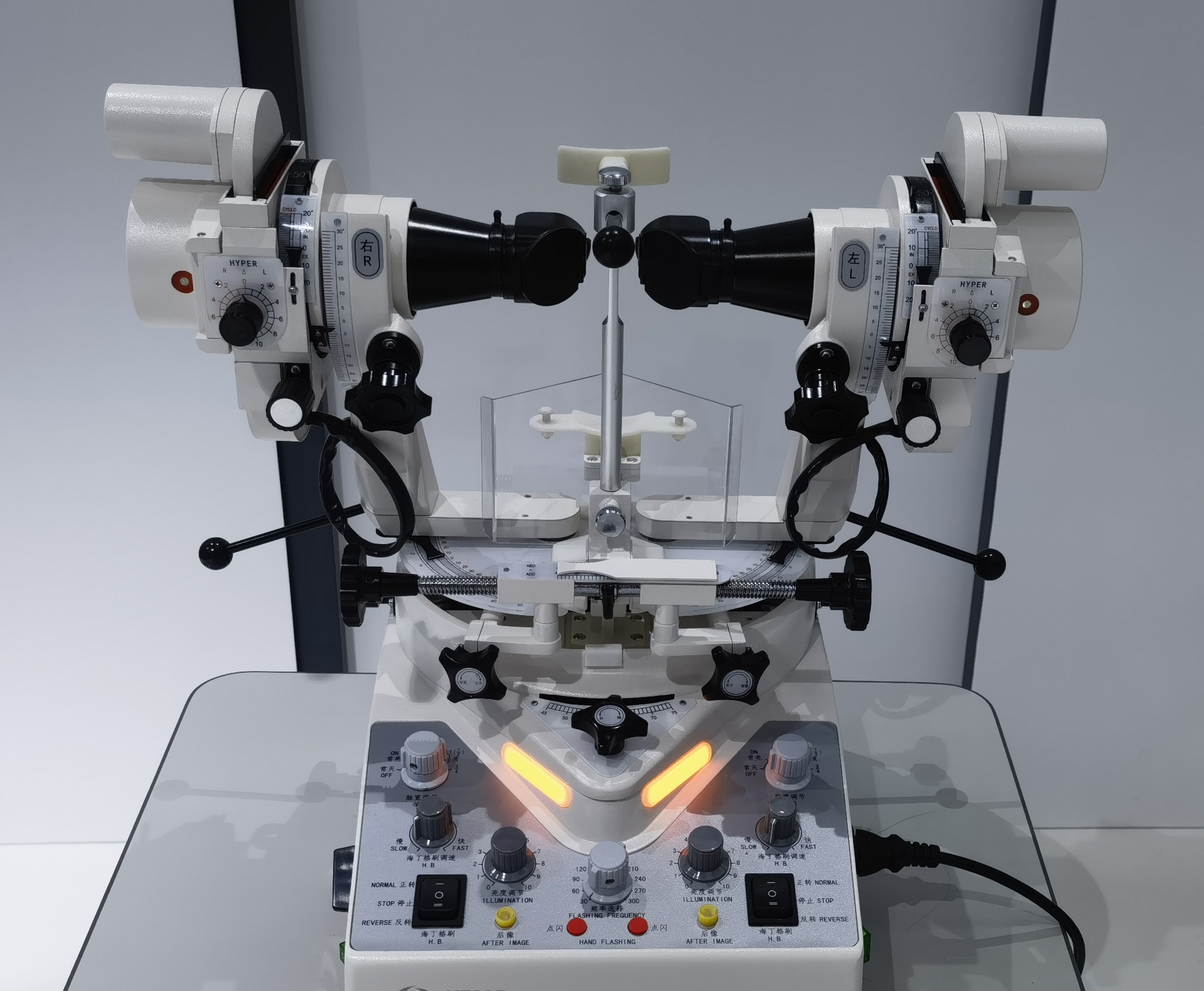

High Quality YZ23B Synoptophore Ophthalmic Equipment for Eye Examination
No.1601259131
High Quality YZ23B Synoptophore Ophthalmic Equipment for Eye Examination
YZ23B
Eye Sight Examination
Darkroom Illumination
LED bulb with symmetry design
High Quality YZ23B Synoptophore Ophthalmic Equipment for Eye Examination
Main Features:
1.Diagnosis and treatment combined with the functions of simultaneous perception, fusion, stereopsis, red reflex and after-image.
2. Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different functions.
3. Using transflective reflector in the design of viewing system to facilitate the user to observe ocular position.
4. Using advanced LED light in the illumination with even illumination, low heat and long service life.
5. Pictures designed by new technology are anti-broken and has long service life.
6. Manual or automatic coruscation with accurate frequency and various type is at user's option.
7. Optional pictures are provided for quantitative measuring of stereopsis acuity (40”~1000”)
Technical Data:
|
Magnification |
1.65× |
|
Diameter of Field |
≥56mm |
|
Red Light |
λ = 640nm coruscation system |
|
Pictures of left and right can be moved up and down according optical axis |
±10Δ |
|
Pictures of left and right rotate around optical axis |
±20° |
|
Pupilary Adjustment |
45~75mm |
|
Darkroom Illumination |
LED bulb with symmetry design |
|
Adjustable Haidingers Brush |
50~100 round/minute |
|
Coruscation Form |
manual or automatic |
|
Automatic Coruscation Frequency |
10-Steps, 30~300 times/minute |
|
Range of Automatic Coruscation ( each cycle) |
1/4 on 3/4 off, 1/2 on 1/2 off, 3/4 on 1/4 off |
|
Type of Automatic Coruscation |
Left and right can be turned on or off at the same time Left and right can be turned on or off alternatively One on and the other off One on or off while the other can be turned on or off |

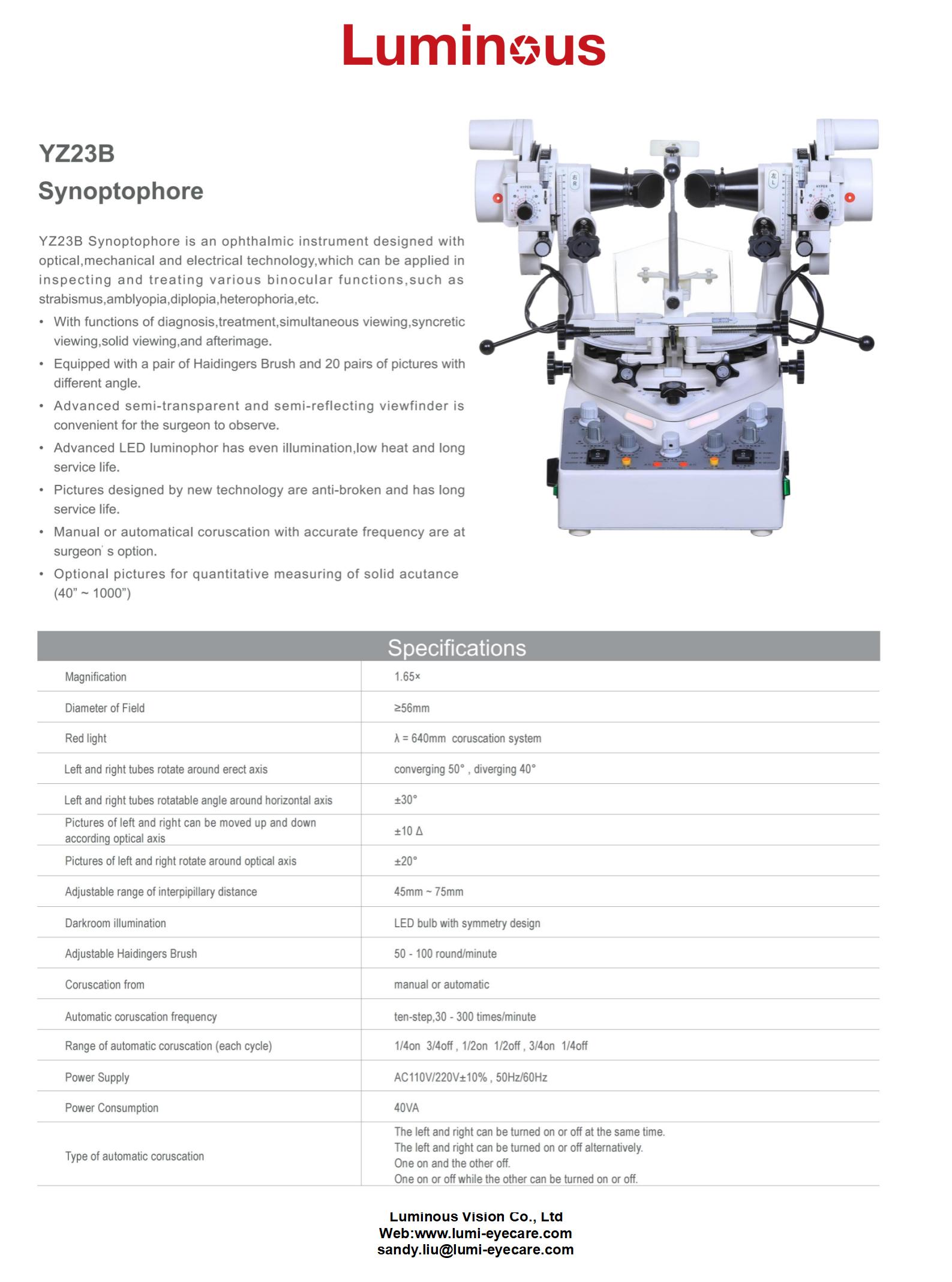

Brochure
More Photos and Details
