Auto Refractometer-AR-7610-China hot-sale auto ref/keratometer refractometer/Ophthalmic optometry optical instruments
No.1601220465
Auto Refractometer-AR-7610
Model: AR-7610 Without keratometer
If you need Keratometer function,you need to choose ARK-7610 With keratometer fucntion.
Main Feature:
7" Color and touch screen,
Auto tracking
Motorized chinrest
One key lock
IOL function
Contact lens measure
1.Technical Data:

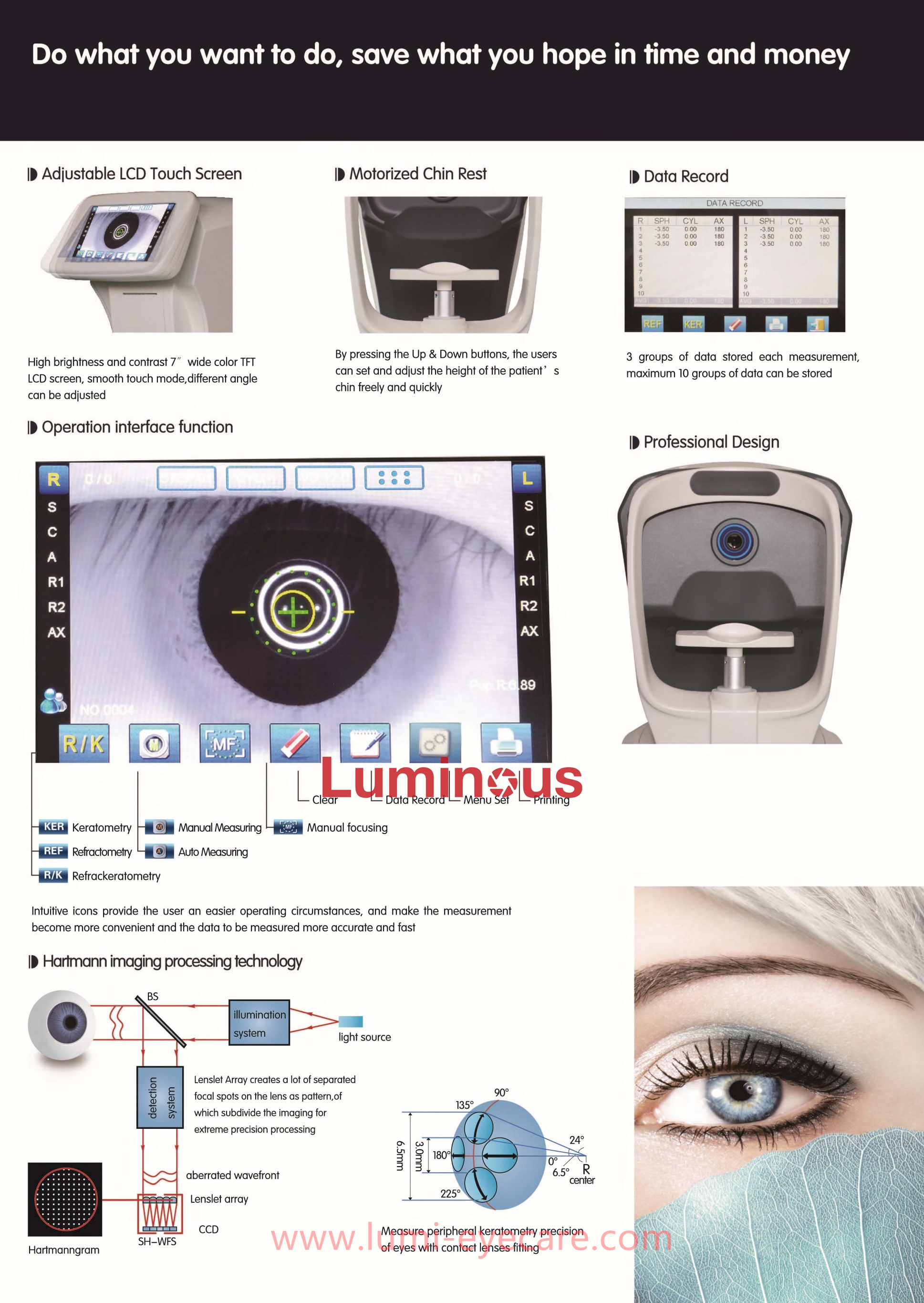

New optical system, unique imaging impression
Hartman imaging analyzing and processing technology, accurate measurment result touch screen, can move front and back freely
| Sphere | -30.00D~+25.00D(VD=12mm, 0.01, 0.06, 0.12, 0.25 Unit) |
| Cylinder | 0.00D~±10.00D(0.06, 0.12, 0.25 Unit) -, +, ± |
| Axis | 0~180°1°step |
| PD | 10~86mm, 1mm step |
| VD | 0.0, 12.0, 13.75, 15.0 |
| Min.Pupil Size | 2mm |
| Measuring Time | ∠0.5s |
| Pupil diameter | 2.00~8.00mm |
| Measuring light energy | ∠30uw(Insure measuring safety) |
| Radius of curvature | 5.0~10mm(increment:0.01mm) |
| Corneal Power | 33.00D~67.00D(In case that the corneal equivalent refractive power is 1.3375) |
| Corneal astigmatism | 0.00D~-15.00D(0.06D/0.12D/0.25D Unit) |
| Axis | 1~180°(increment:1°) |
| Corneal diameter | 2.0~14 mm(increment:0.1mm) |
| Memory of data | Each 10 measured values of left eyes and right eyes |
| Chart | Auto fog |
| display | SHARP 7″ TFT LCD touch screen(Angle of view adjustable) |
| 57mm thermal printer, | |
| Power supply | AC 100~250V, 50/60Hz |
| Dimension | 75*41*63cm packing size |
| Gross Weight | 28kg |
2.Other Performance Parameters
2.1 7″TFT touch screen (angle adjustable)
2.2 Printer: 57mm thermal printer, auto paper cutting
2.3 Measuring Light Energy
2.4 Measuring Time: <0.5s
2.5 Minimum 2.0mm pupil can be measured.
The application of cloud and mist chart technology allows the patients’ eyes to look at the internal targets in a natural and comfortable situation and make the measurement more accurate
2.6 Auto tracking, auto focusing and auto measuring of end of measurement (partial model)
2.7 Electrical Power: AC100 ~ 250V, 50/60Hz
3.More Information

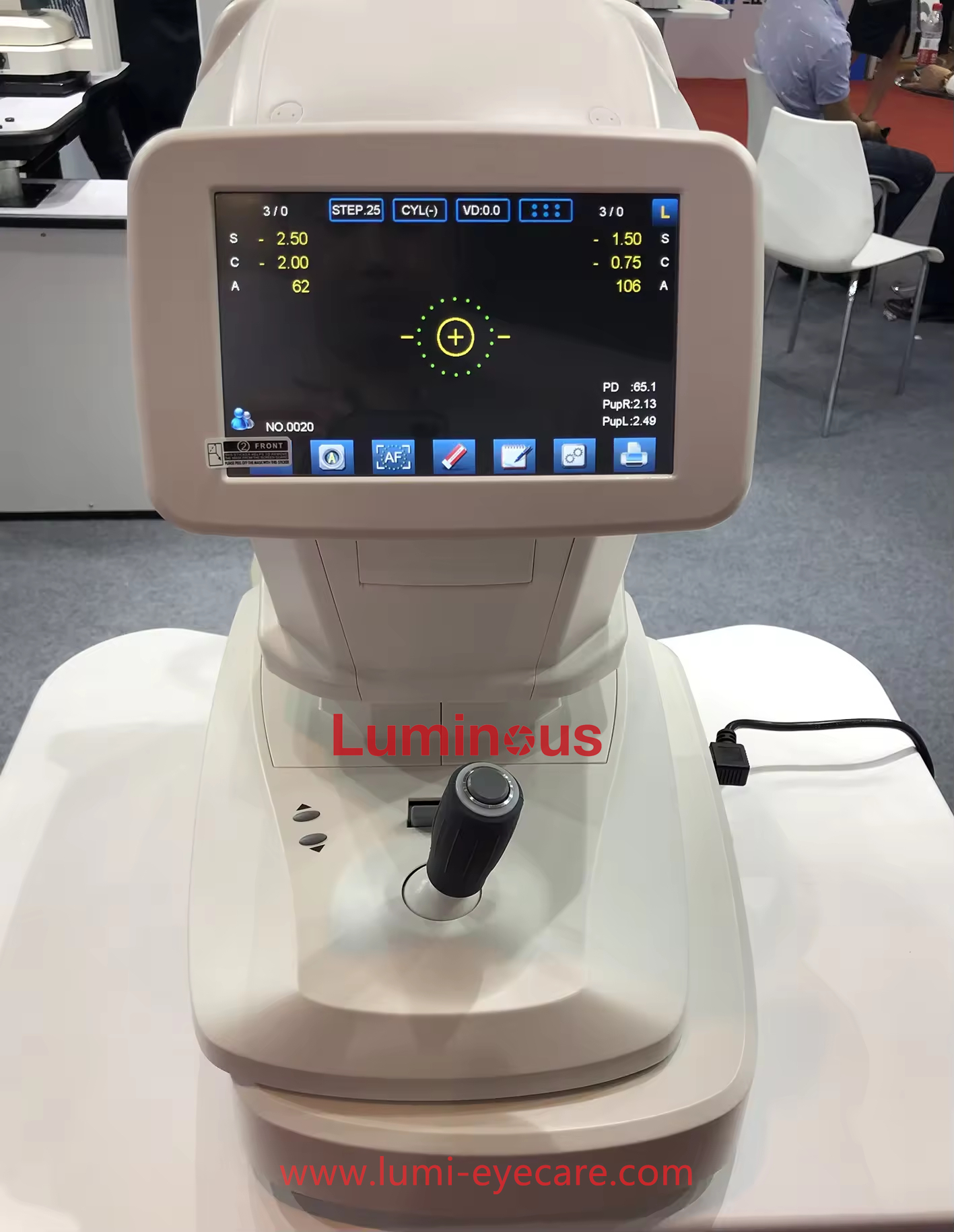

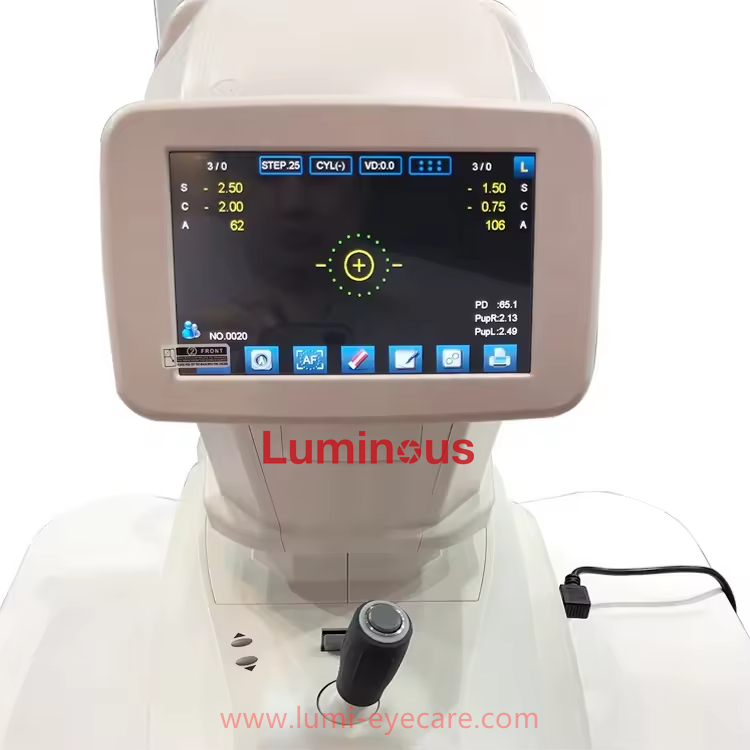

LCD Screen: Monitor for measurement display
Height Adjustment Mark: The eyes’ height position of the patients
Printer Cover: Press the coverto openor close
Measure Button: Performing the measurement by pressing after focusing
Joystick: Adjust the focus by moving it left / right, up / down, forward / backward
Stage Fixing Lever: Lock thesliding body
Power Switch/Socket: AC power on / off with indicator light / AC power inlet (fuse F5AL 250V inside)
Rubber Feet: Support and adjust the instrument horizontal
Chinrest Up/Down Button: Adjust the height of the chinrest
Data Interface: USB RS232 interface to be connected with other equipments (This refractometer and the automatic phoroptor serials connected should comply with the related electrical requirements in IEC60601-1-1-2000)
